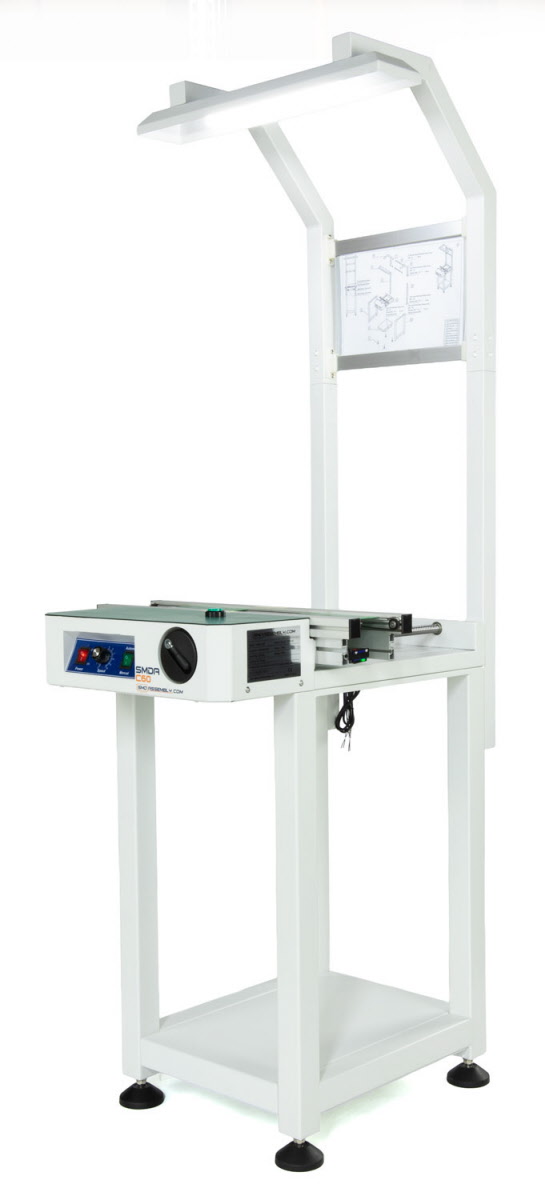

Engineered for precision inspection, this compact conveyor system enhances visibility and control on production lines. Integrated LED tube lighting ensures consistent illumination, supporting accurate defect detection.

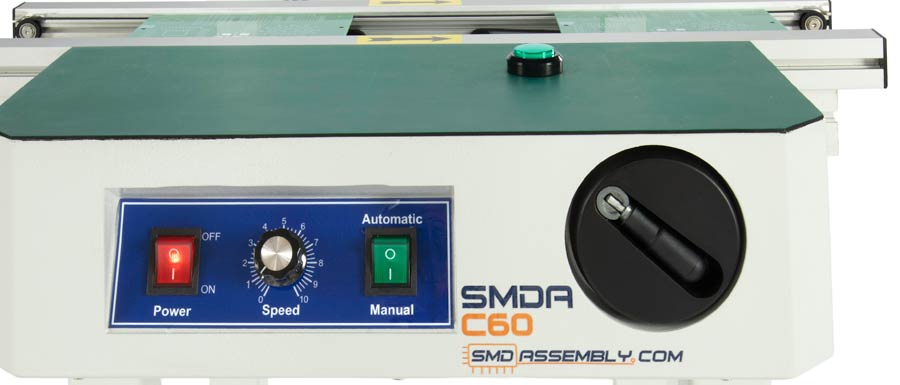

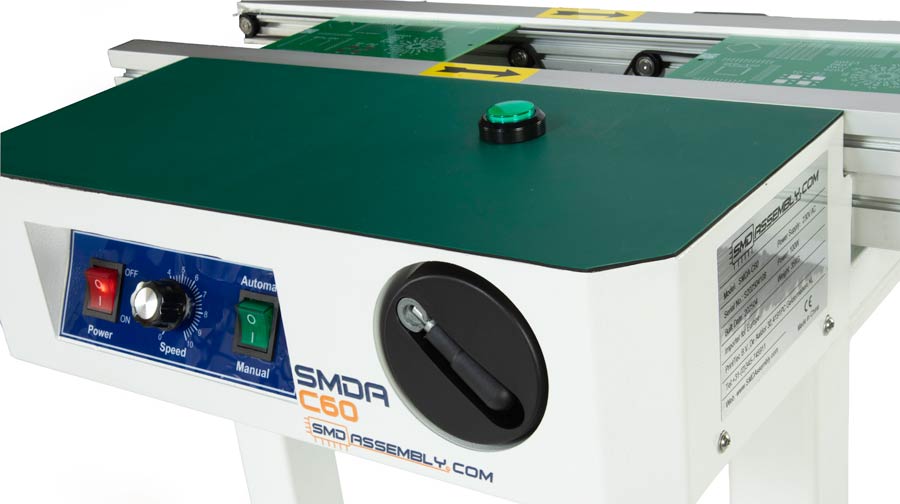

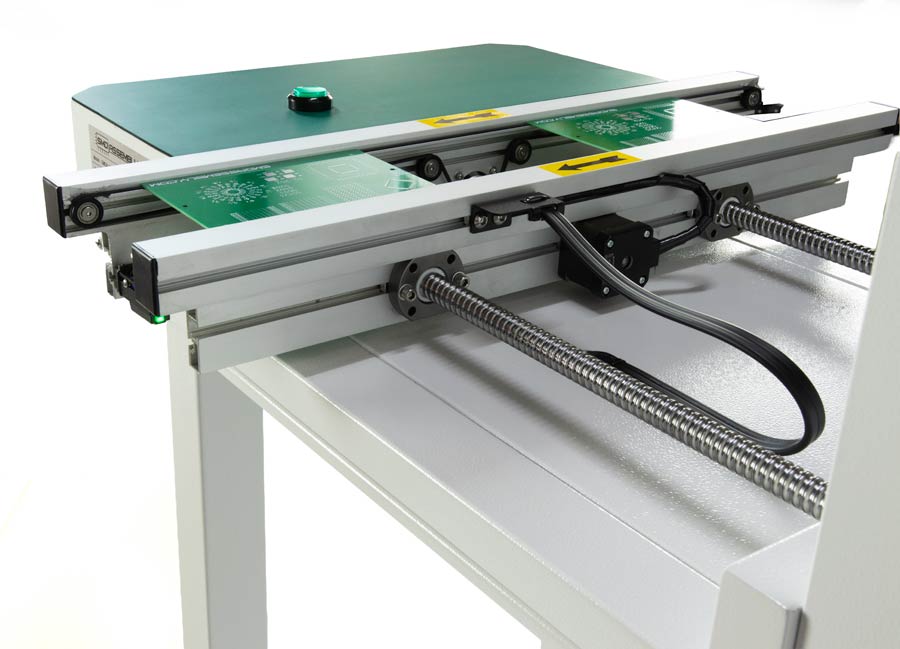

Operators can choose between continuous movement or pause mode for detailed inspection, improving quality assurance flexibility. The unit measures 1200 × 700 × 1800 mm, with an adjustable width range of 50–350 mm and ergonomic process height of 900 ± 20 mm.
A durable rubber belt delivers smooth transport at speeds from 0.5 to 20 m/min. Flow direction is configurable (left-to-right or right-to-left), enabling seamless integration. Featuring SMEMA interface compatibility, 230 VAC power input, and a lightweight 40 kg frame, it is ideal for modern electronics and manufacturing environments.
Specifications
| Width Range | 50mm-350mm |
| Conveyor Style | Rubber Belt |
| Conveyor Speed | 0.5-20M/min |
| Process height | 900±20mm |
| Flow Direction | L→R or R→L |

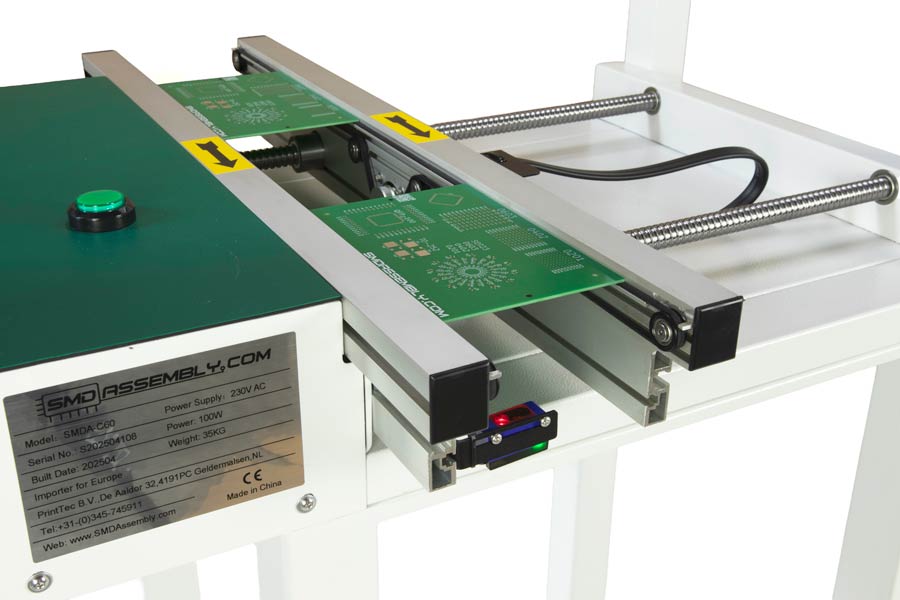

| Signal interface | SMEMA |

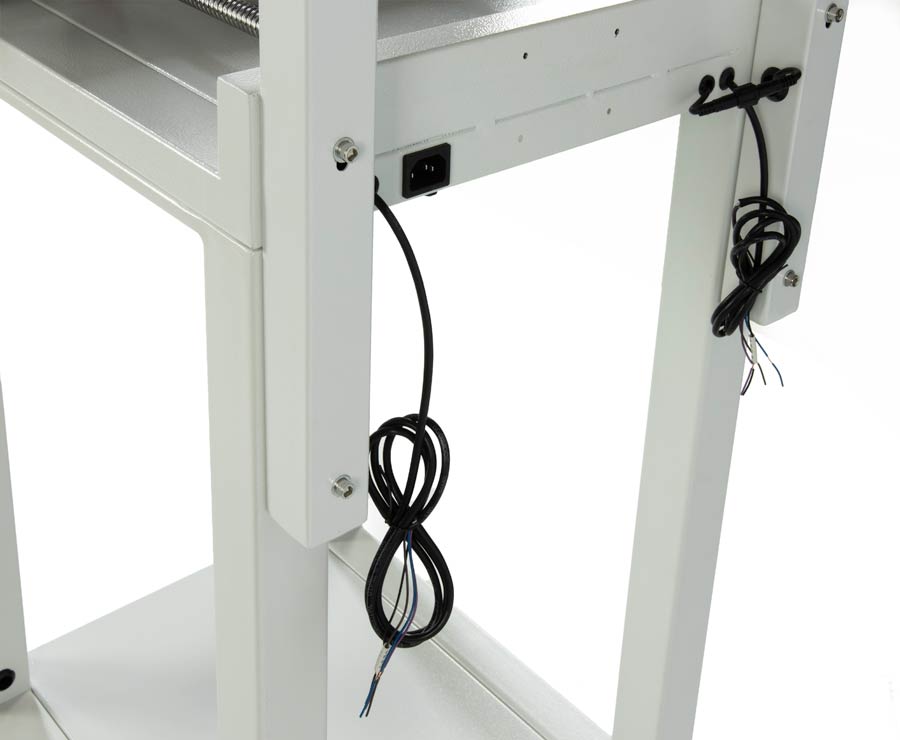

| Power Requirement | 230Vac 50/60Hz |
| Please ask for freight quotation. |
| |
| Dimensions mm / Weight |
| SMDA-C60 | 600(L)x700(W)x1.800(H) 40 Kg |
| SMDA-C100 | 1.000(L)x700(W)x1.800(H) 45 Kg |
| SMDA-C120 | 1.200(L)x700(W)x1.800(H) 55 Kg |
| SMDA-C150 | 1.500(L)x700(W)x1.800(H) 65 Kg |
| |
| The Conveyors are shipped per crate transport. |
| |
| Crate Dimensions / Shipping Weight |
| SMDA-C60 | 69 x 84 x 46(h) cm 51 Kg |
| SMDA-C100 | 112 x 84 x 46(h) cm 67 Kg |
| SMDA-C120 | 132 x 84 x 46(h) cm 73 Kg |
| SMDA-C150 | 162 x 84 x 46(h) cm 77 Kg |
