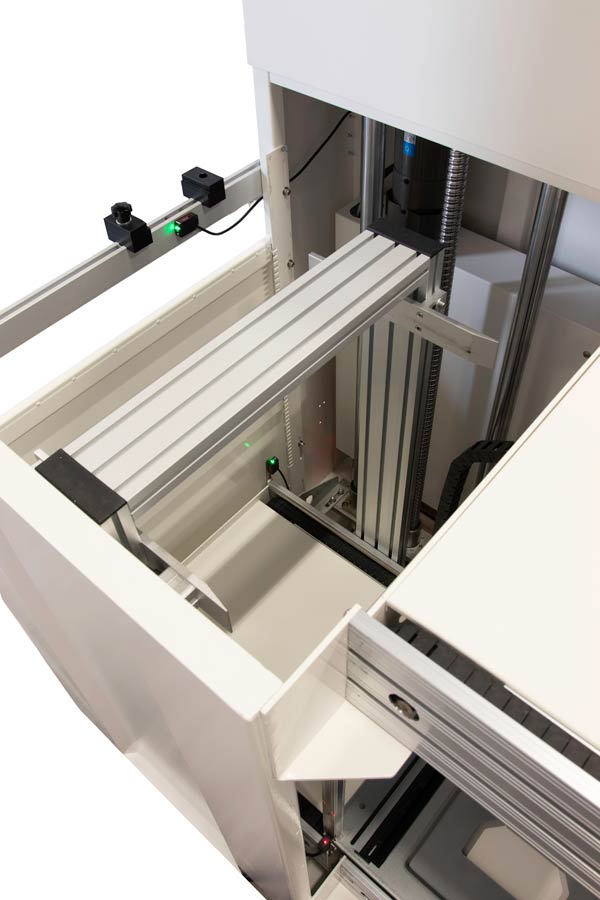

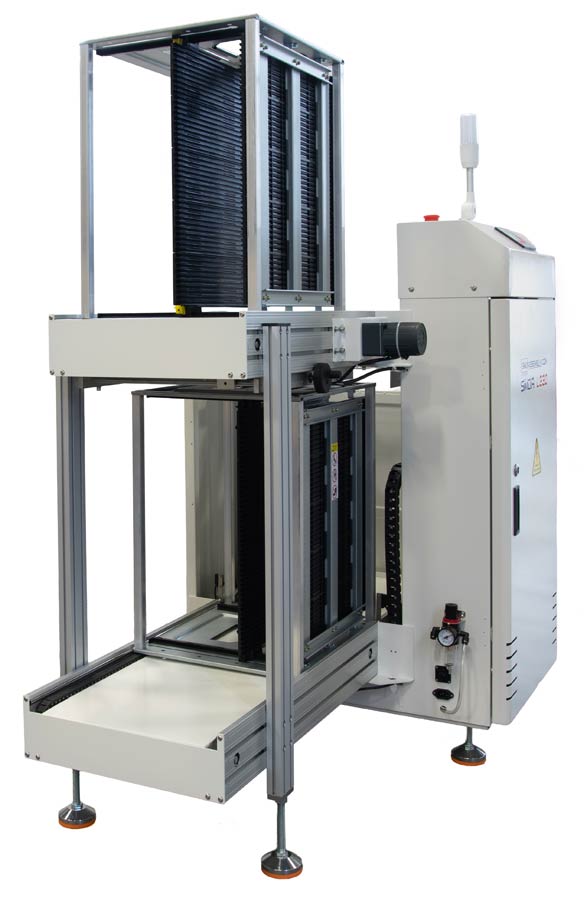

The SMDA-L390 is equipped with two cassettes or magazines, enabling continuous operation and reducing downtime associated with reloading.
Each cassette can hold a significant number of PCBs, with the system supporting a maximum capacity of 50 boards. This dual-magazine configuration allows one cassette to be in operation while the other is being prepared or replaced, ensuring a seamless workflow.
For engineers focused on optimizing line efficiency, this feature is particularly valuable, as it minimizes interruptions and maximizes throughput.
Click here for the right size PCB rack
Specifications
| Working Power Supply |
AC220V 50/60HZ |

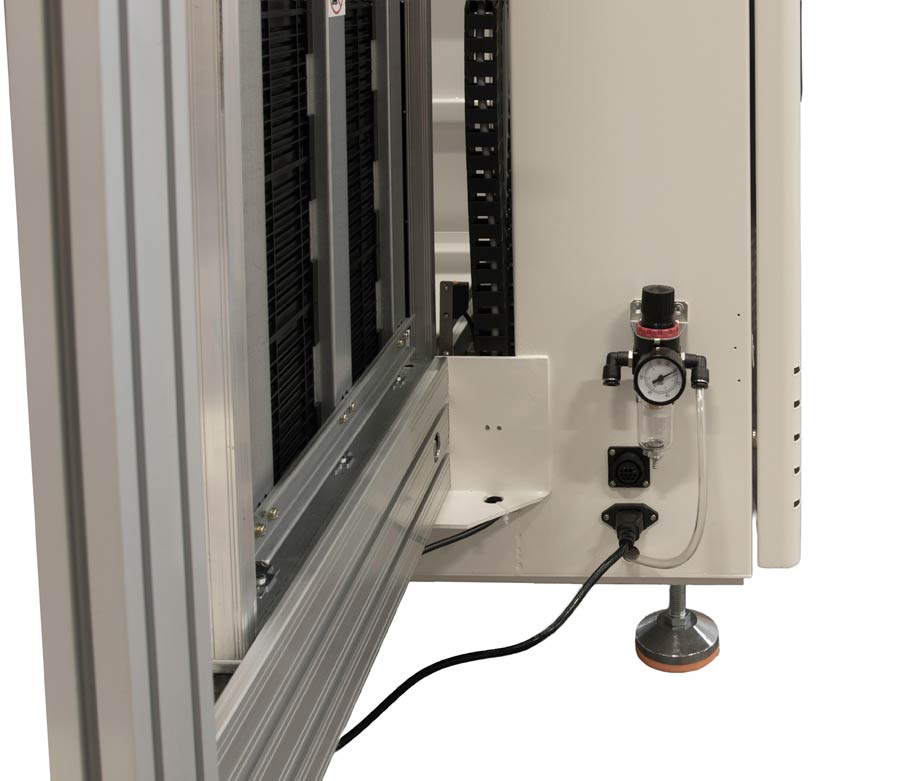

| Supply Pressure |
5kg |
| PCB Size(mm) |
350x50>220 mm |
| PCB Transmission Direction |
Left to right (right to left optional) |
| Rack Specifications |
355x320x563 mm |
| Hopper Lifting Step |
10, 20, 30, 40 mm |
| Transmission Height |
900±20 mm |

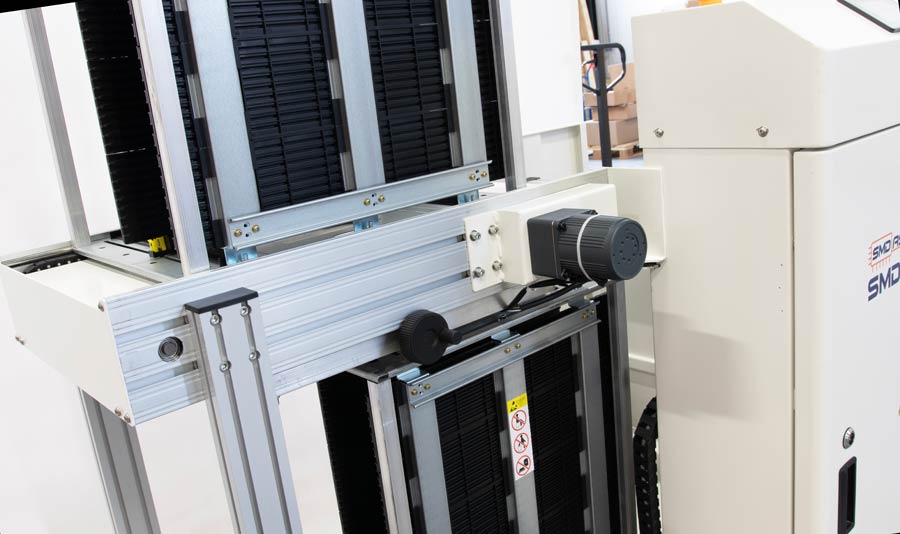

| Main Motor Power (W) |
295 |
| |

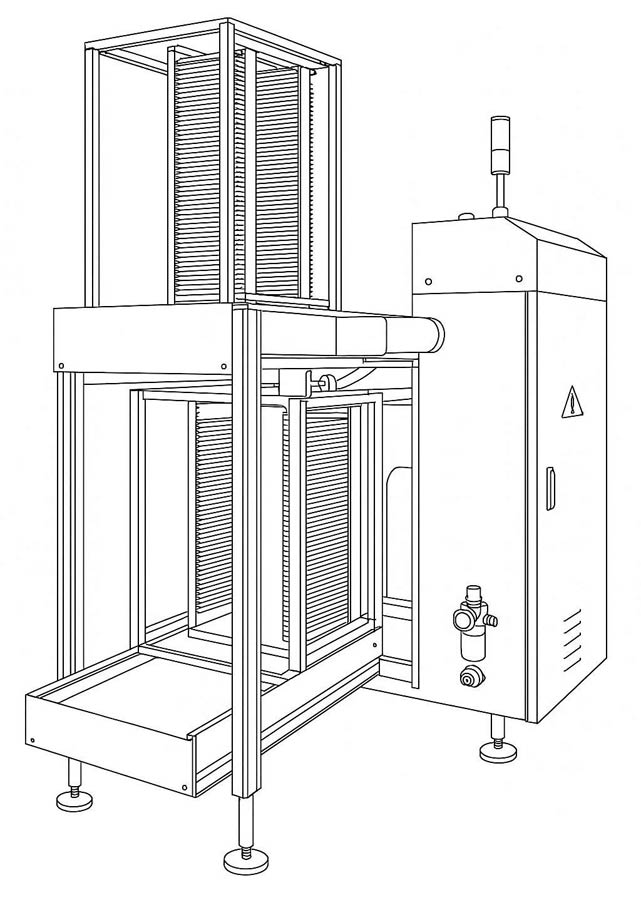

| Dimensions |
1300x740x1170 mm |
| Weight |
200 Kg |

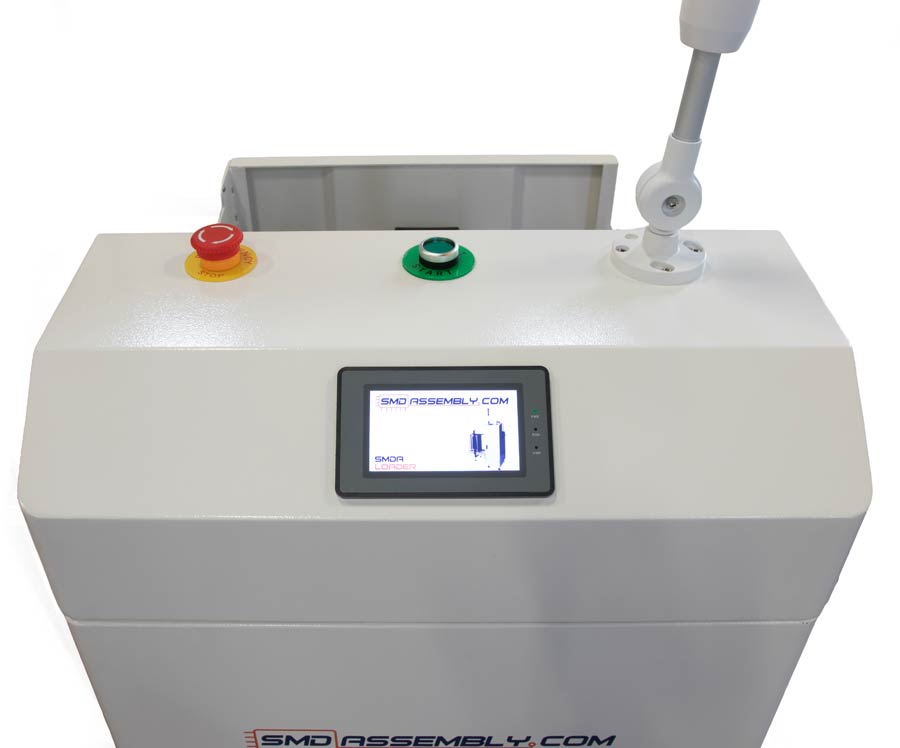

| Control Panel Selection |
1. Touch screen; 2. Button |
