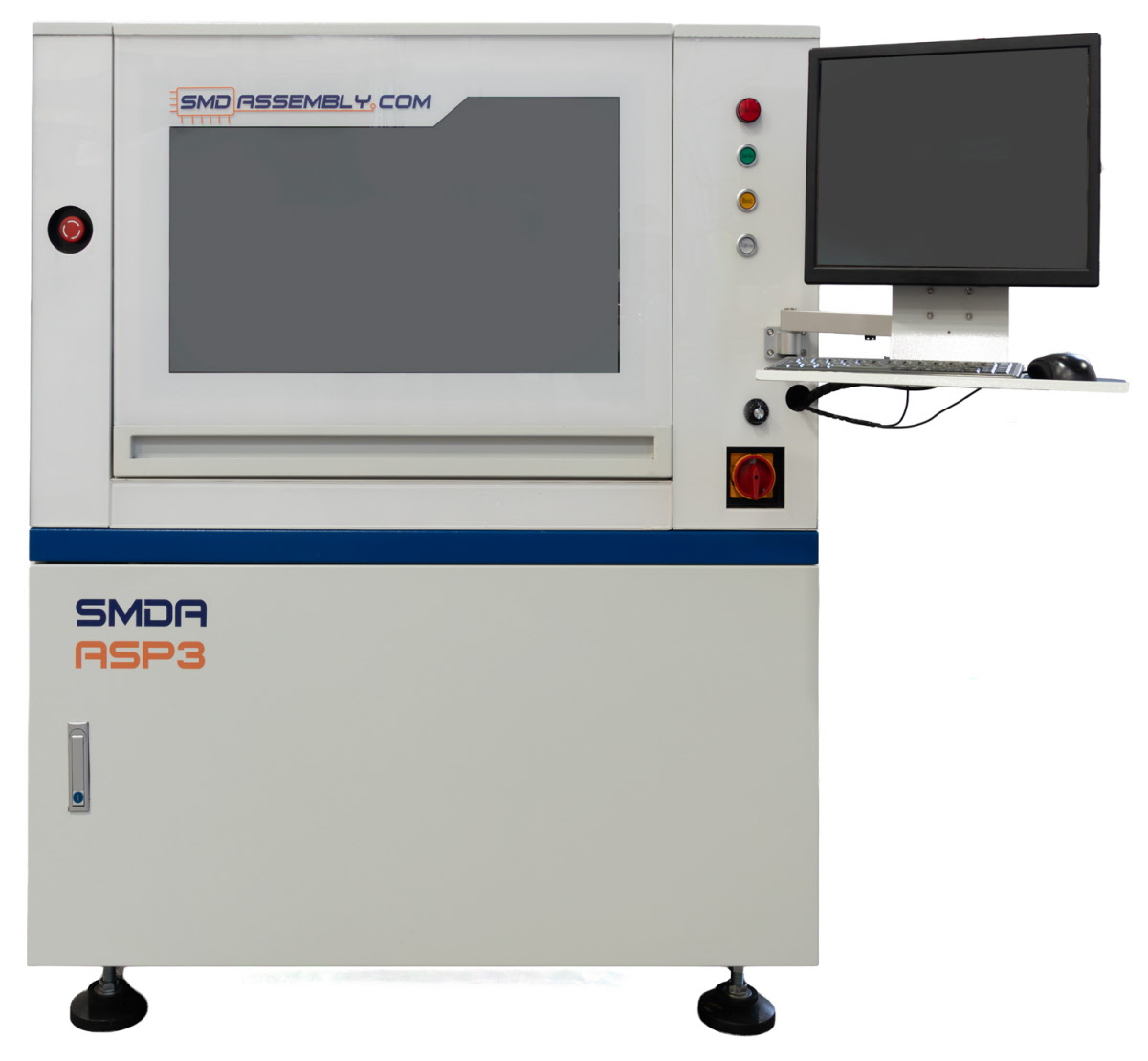

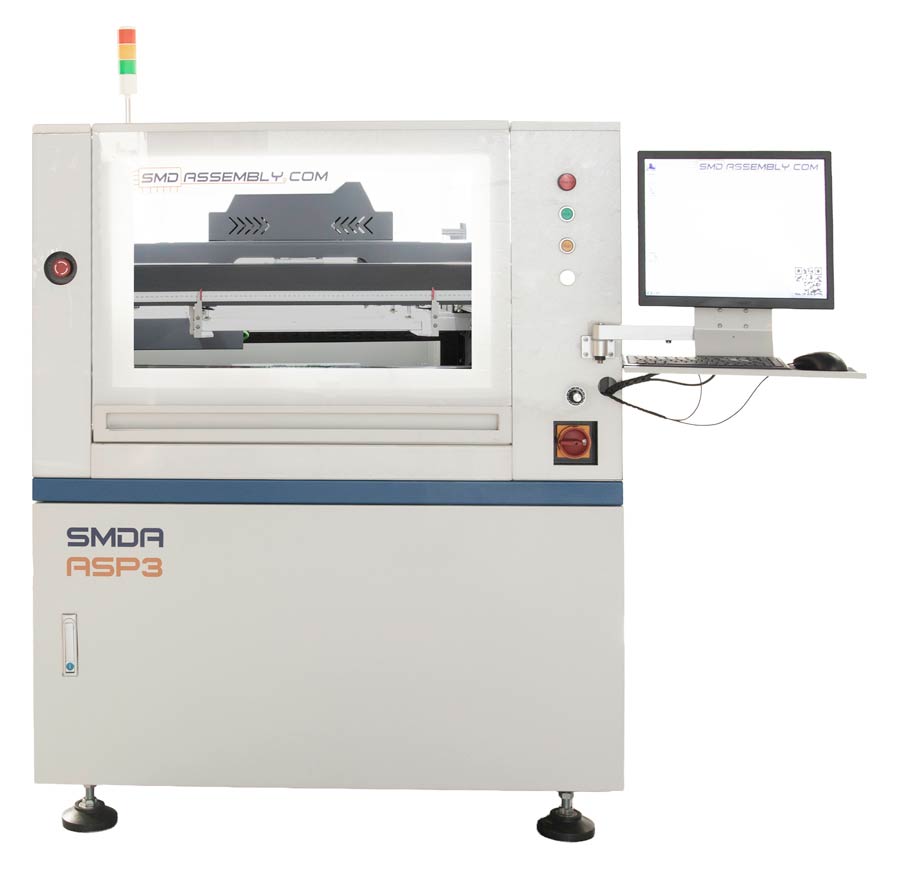

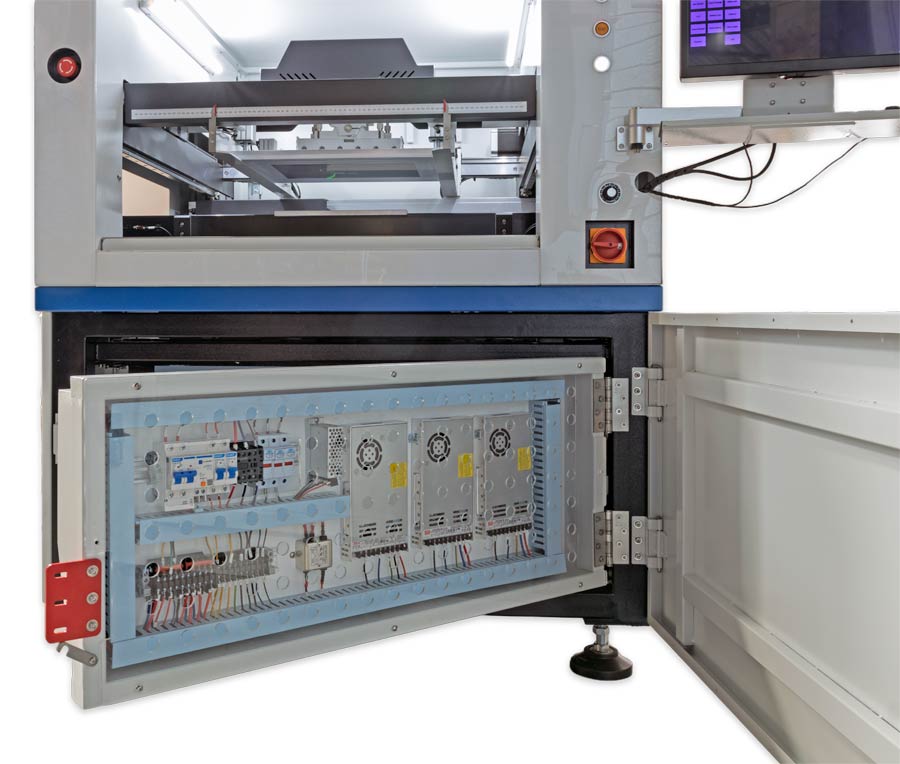

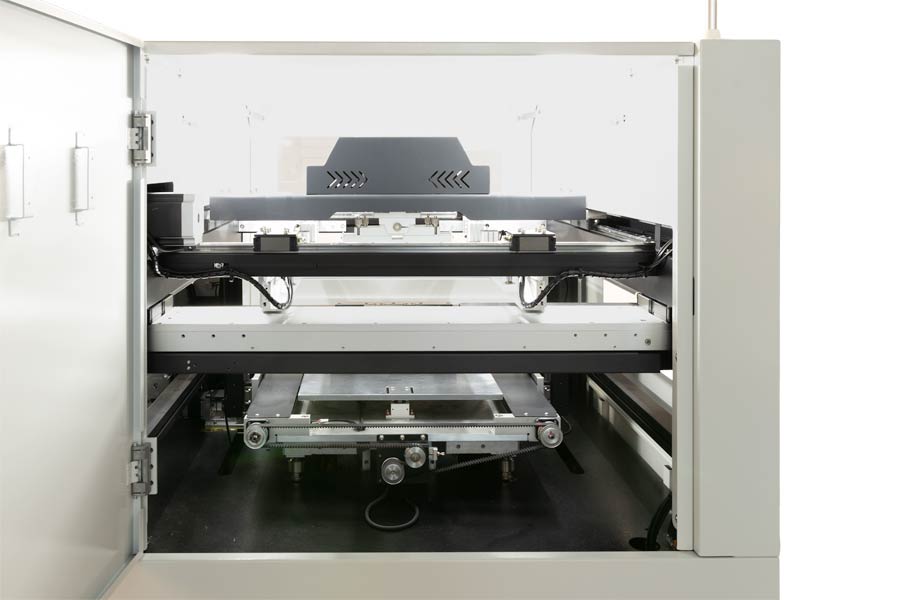

The SMDA-ASP3 is a robustly engineered printing platform designed for high precision production environments. Its rigid mechanical construction and stable frame ensure consistent accuracy, enabling reliable printing down to 0201 component dimensions.

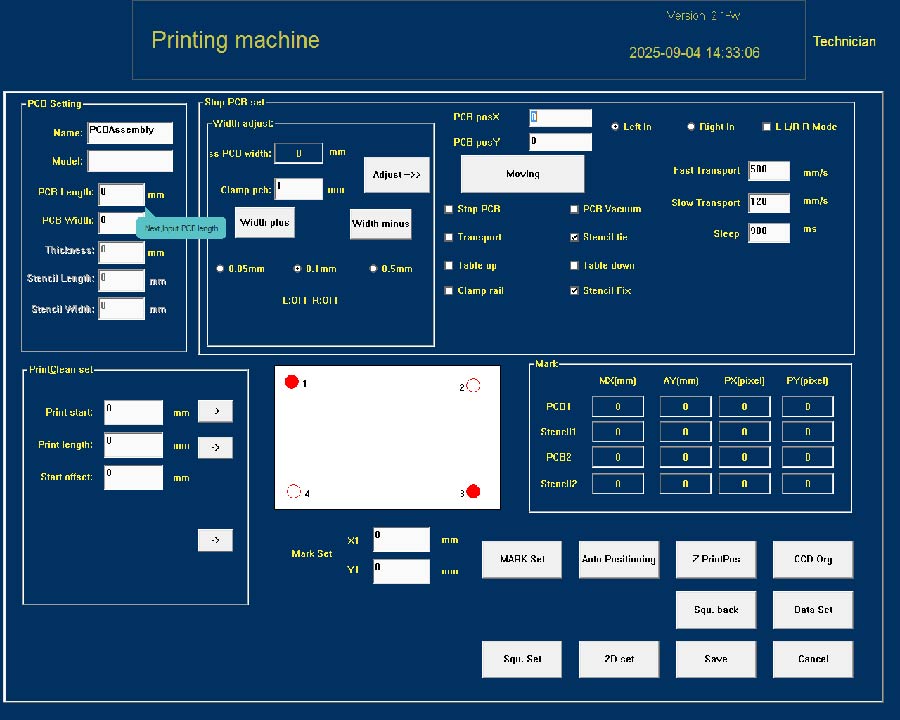

Built with process stability in mind, the SMDA-ASP3 delivers repeatable results over long production runs while maintaining tight tolerances. The machine combines industrial grade reliability with a straightforward, intuitive operating concept, minimizing setup time and reducing the risk of operator error.
For engineers who value precision, durability, and efficient operation, the SMDA-ASP3 is a dependable solution that performs exactly as designed — every cycle, every shift.
Specifications

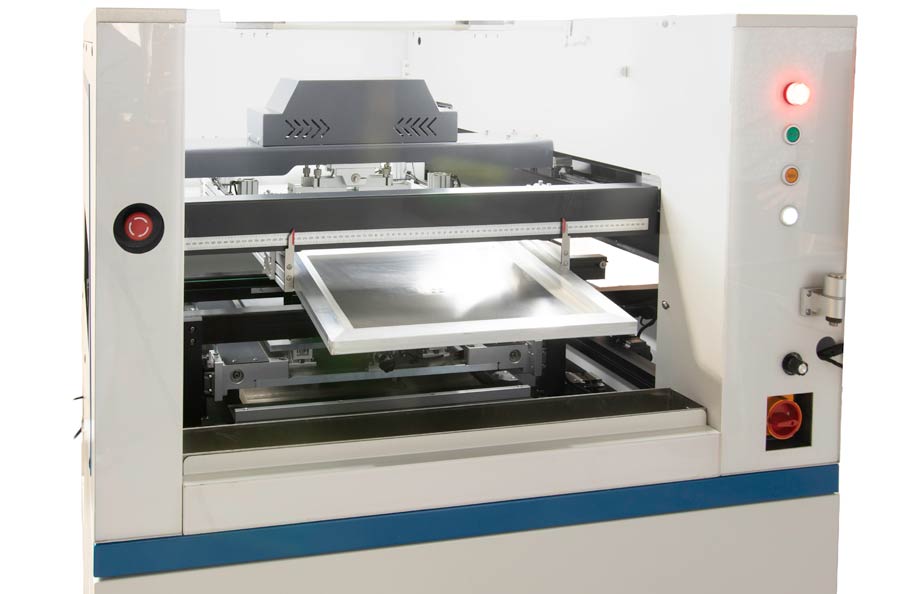

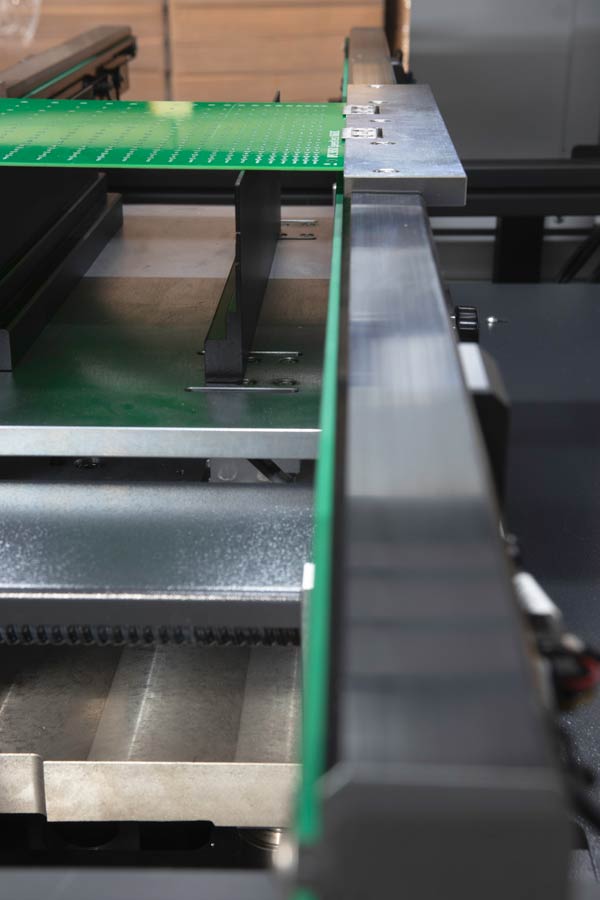

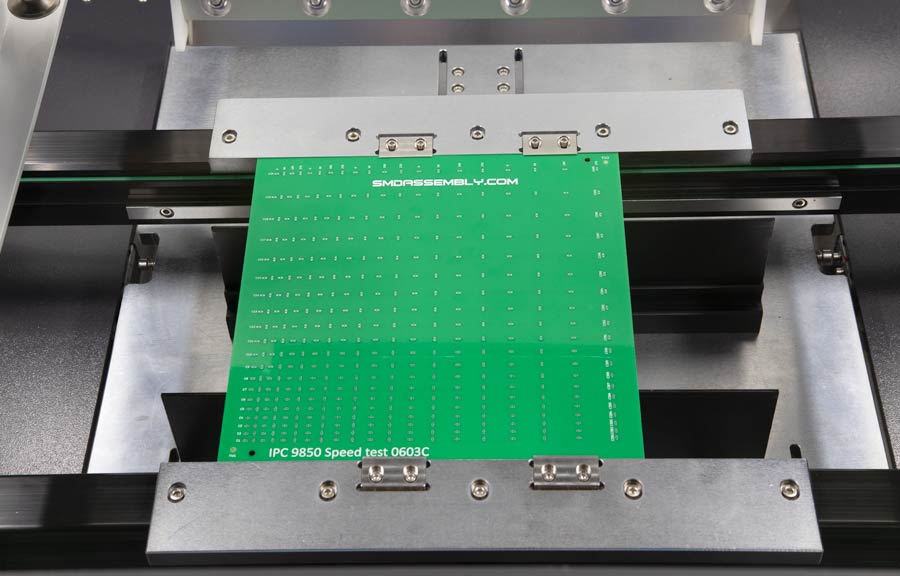

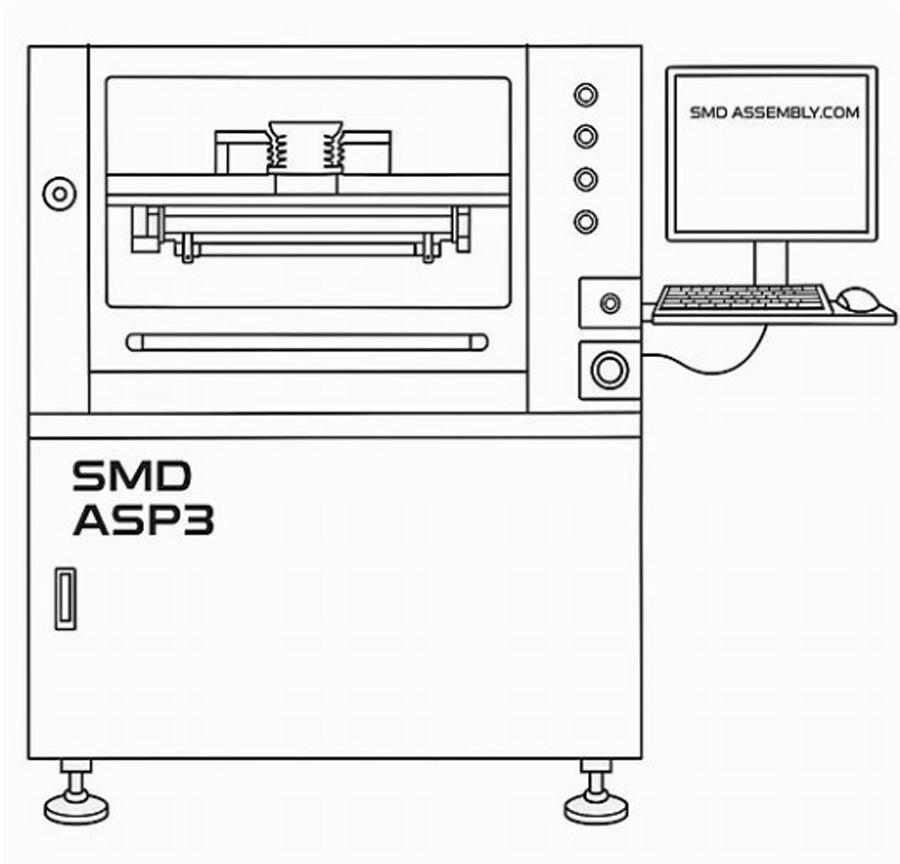

| Min. PCB Size | 50 x 50mm |
| Max. PCB Size | 50 x 330mm |
| PCB Thickness | 0.4-5mm |
| Max. PCB Weight | 3kg |
| Min. Frame Size | 470x370mm |
| Max. Frame Size | 737x737 mm |
| Support System | Magnetic ejector pin, manually adjustable lifting platform |
| Clamping method | Unique flexible side clip |
| Workbench adjustment range | X:±7.5mm; Y:±7.5mm; θ:±2° |
| Rail conveying speed | Max 1500mm/S programmable |
| Rail transmission height | 900±40mm |
| Transmission direction | left-right, right-left, left-left, right-right |
| Squeegee pressure | 0~10Kgƒ/cm2 |
| Printing speed | 1~200mm/sec |
| Squeegee angle | 60° (standard), 55°, 45° |
| Squeegee Type | Steel scraper, rubber scraper |
| Cleaning method | Dry cleaning, wet cleaning (programmable) |
| Repeatability | ±10um at 6 Sigma |
| Printing accuracy | ±25um at 6 Sigma |
| Cycle Time | <9s (excluding printing and cleaning time) |
| Power supply | AC 220V±10% 50/60HZ single phase |
| |
| Dimensions | 1200(L)x1200(W)x1485(H)mm |
| Weight | ± 572kg |
| |
| The ASP3 is shipped with crate transport. |
| Shipping dimensions | 140 x 140 x 172(h) cm |
| Shipping weight | 688 kg |
