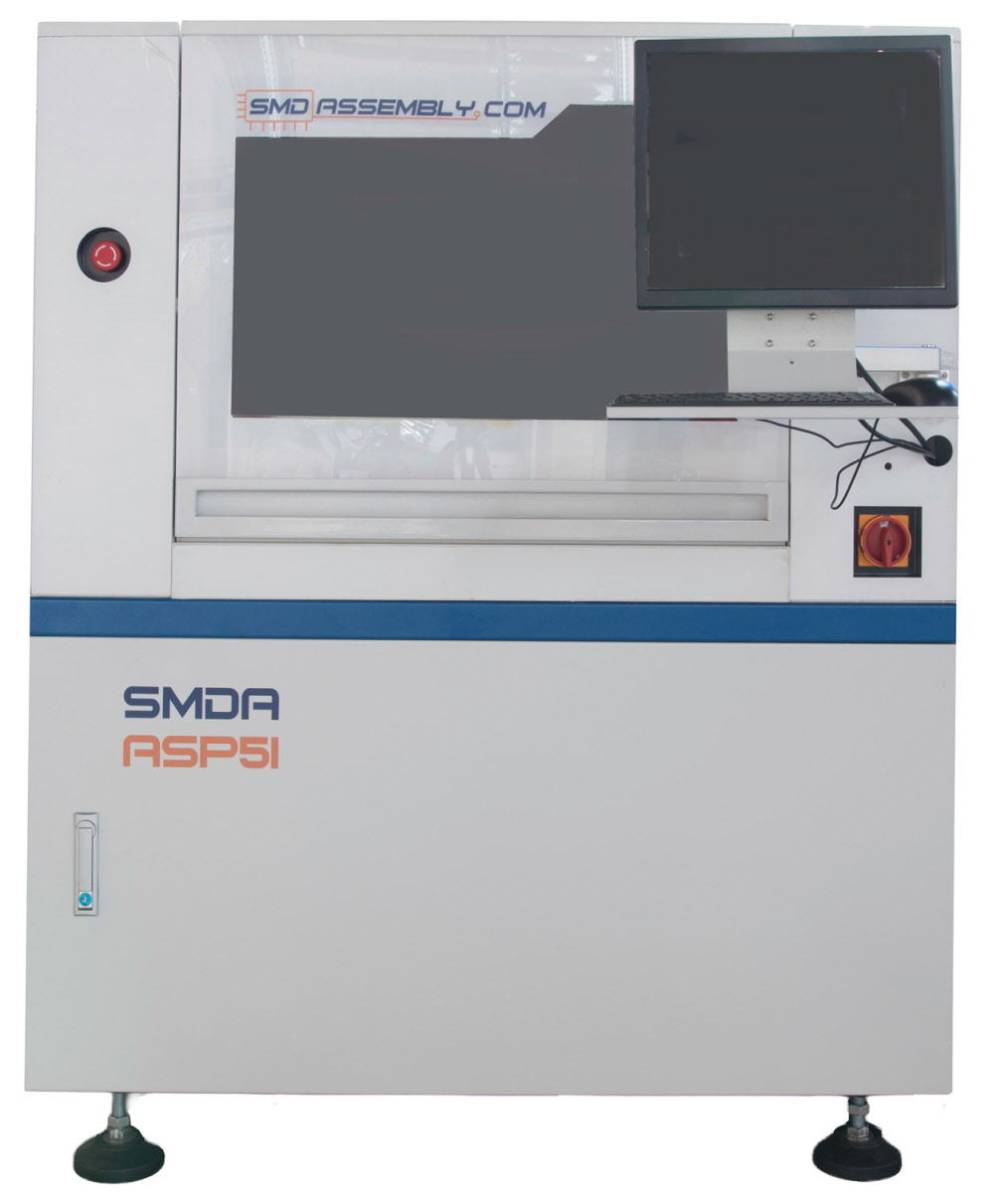

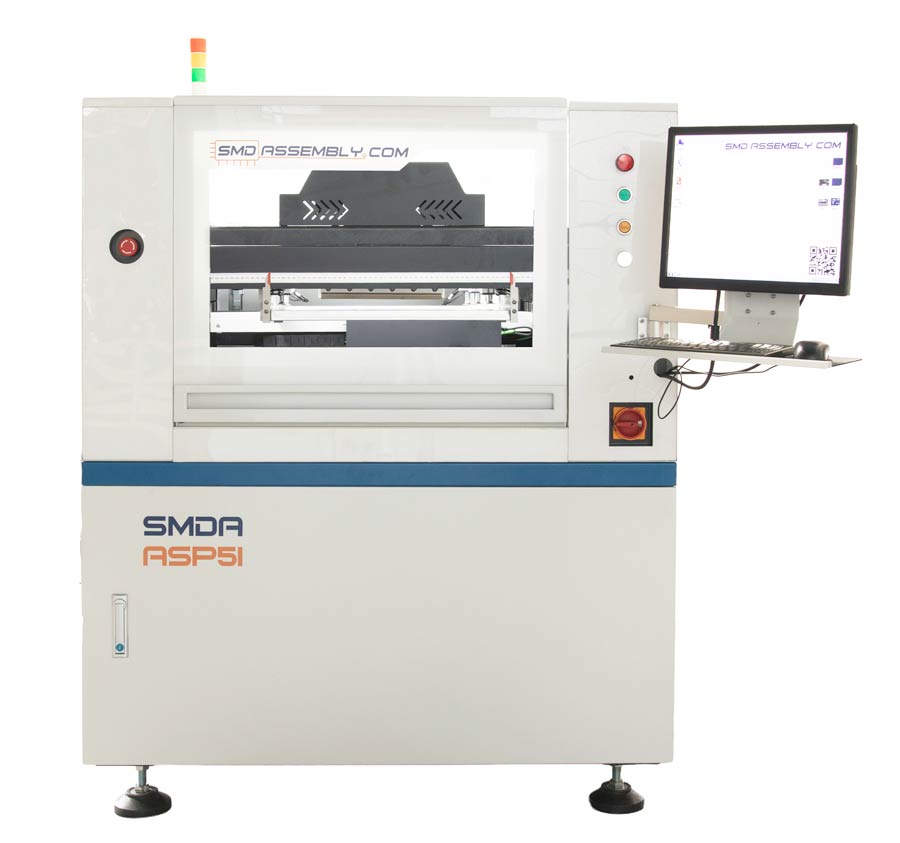

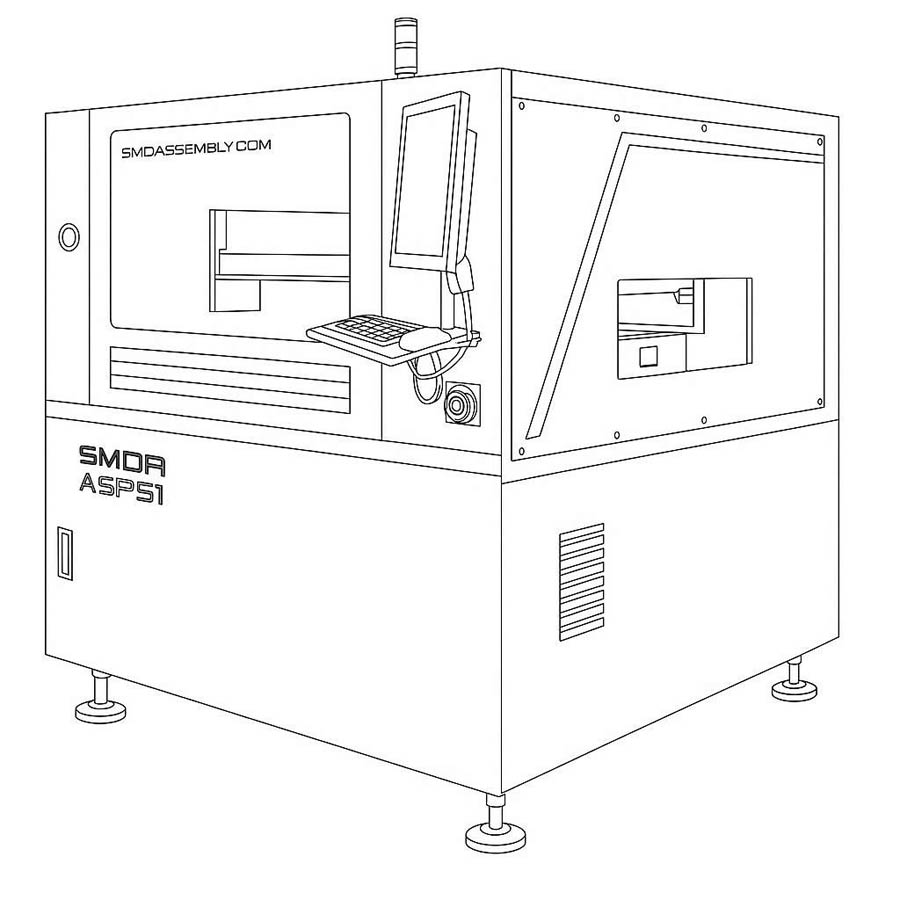

The SMDA-ASP5i automatic stencil printer is a high-precision SMT printing system engineered for consistent solder-paste deposition on fine-pitch PCBs. It features a rigid frame structure, servo-driven alignment mechanisms, and an advanced vision system that compensates for board stretch, stencil wear, and fiducial variation.

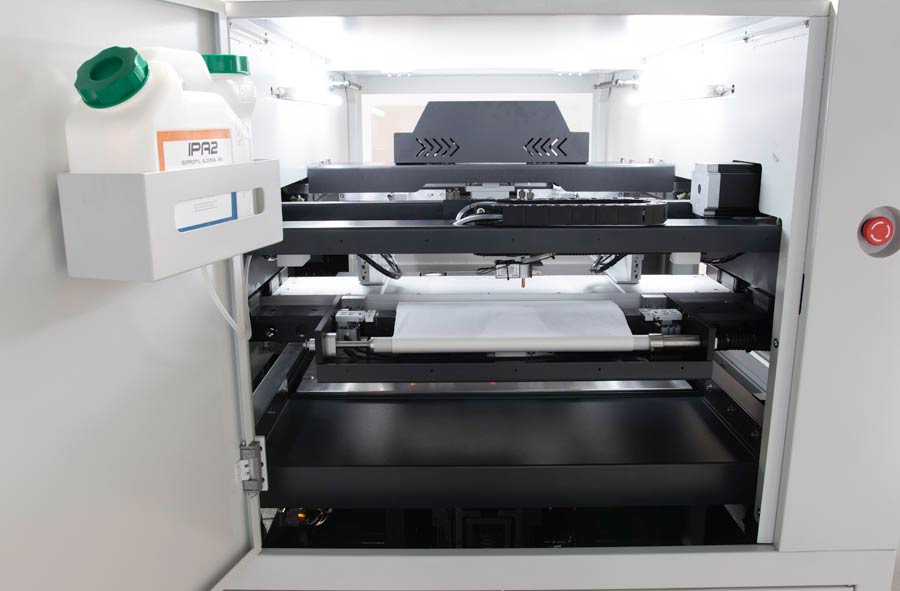

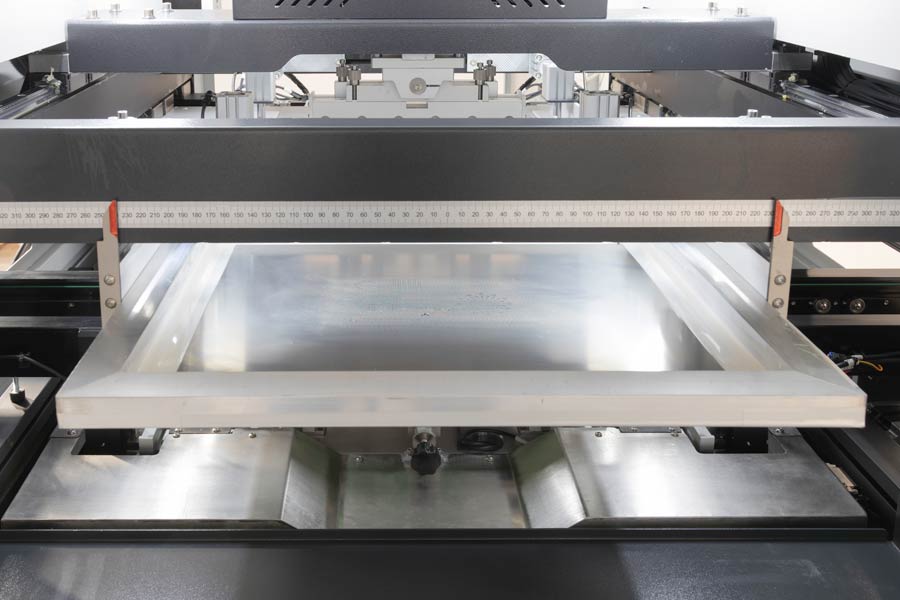

Its closed-loop pressure control ensures uniform squeegee force across the entire print area, improving repeatability for high-density assemblies. The SMDA-ASP5i supports rapid stencil changeover, automated cleaning cycles, and integrated paste-height monitoring to maintain process stability during long production runs.

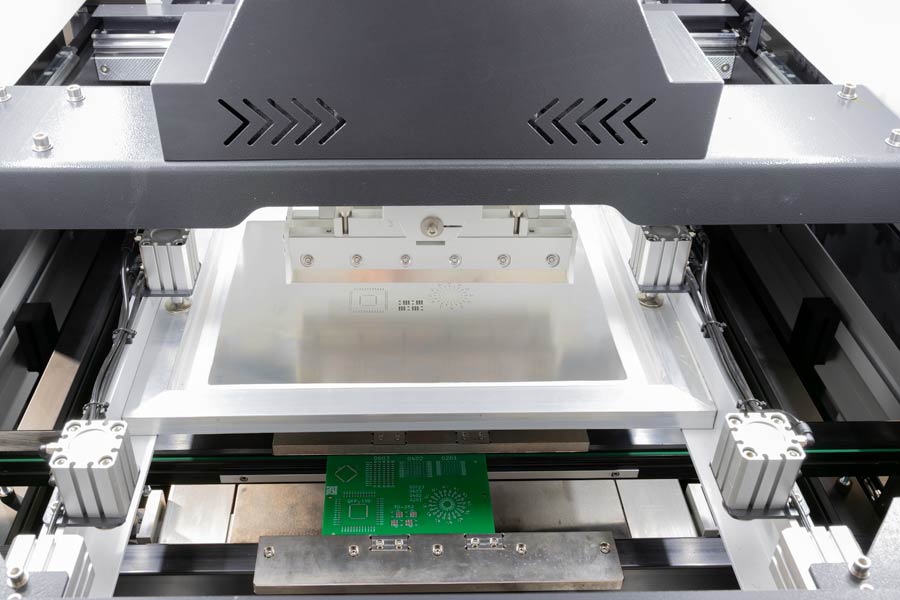

With its optimized PCB clamping system and programmable print parameters, the SMDA-ASP5i delivers reliable throughput and tight process control suitable for modern electronics manufacturing environments.
Specifications
| Operation interface |
Windows 7 |
| Signal Link |
SMEMA |
| Visual parameters |

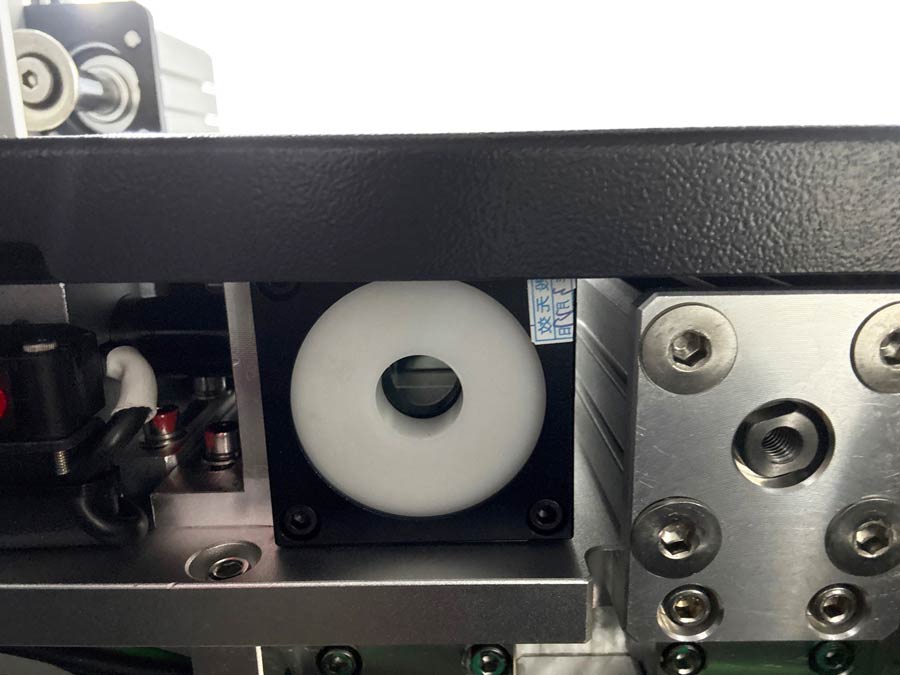

Up and down double vision, high performance CCD and image processing system |
| Repetitive printing accuracy |
±0.01 mm |
| Printing accuracy |
±0.025 mm |
| Max PCB size |
50 x 50 mm to 520 x 340 mm |
| Max PCB thickness |
0.4 ~ 6 mm |

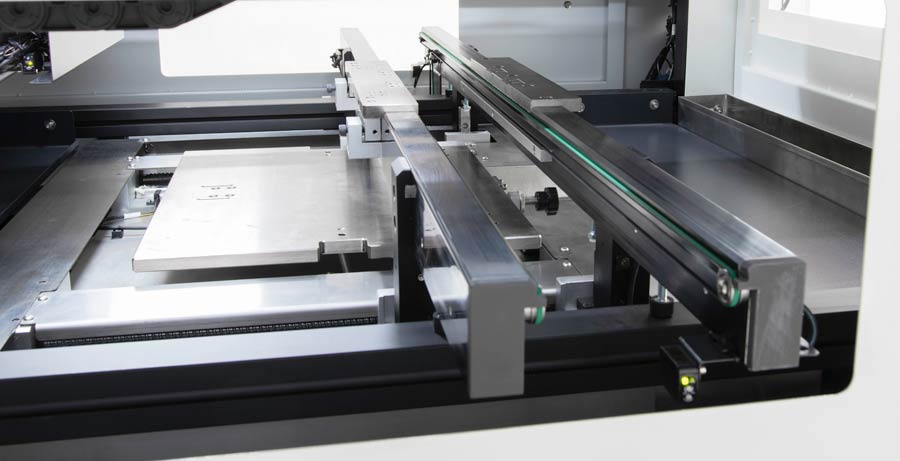

| Tranfer system |
Belt conveyor system |
| Squeegee speed |
10-180mm/sec |
| Squeegee angle |
60° |
| Power |
220V, 2,5kW |
| Dimensions |
120*138*148(h) cm |
| Weight |
610kg |
| |
| The ASP5i is shipped per crate. |
| Shipping dimensions |
160 x 140 x 172 (h) |
| Shipping weight |
737 kg |
