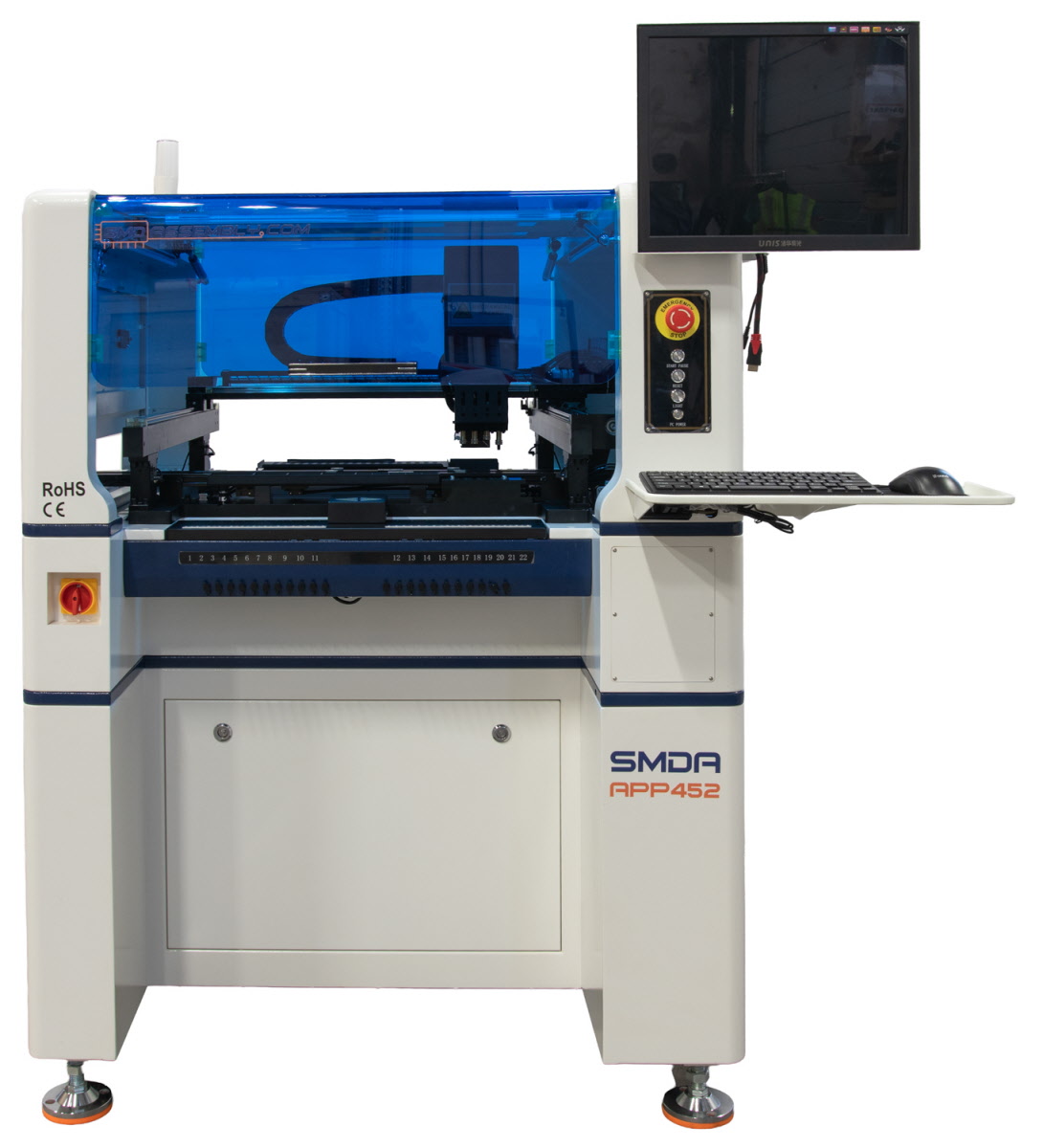

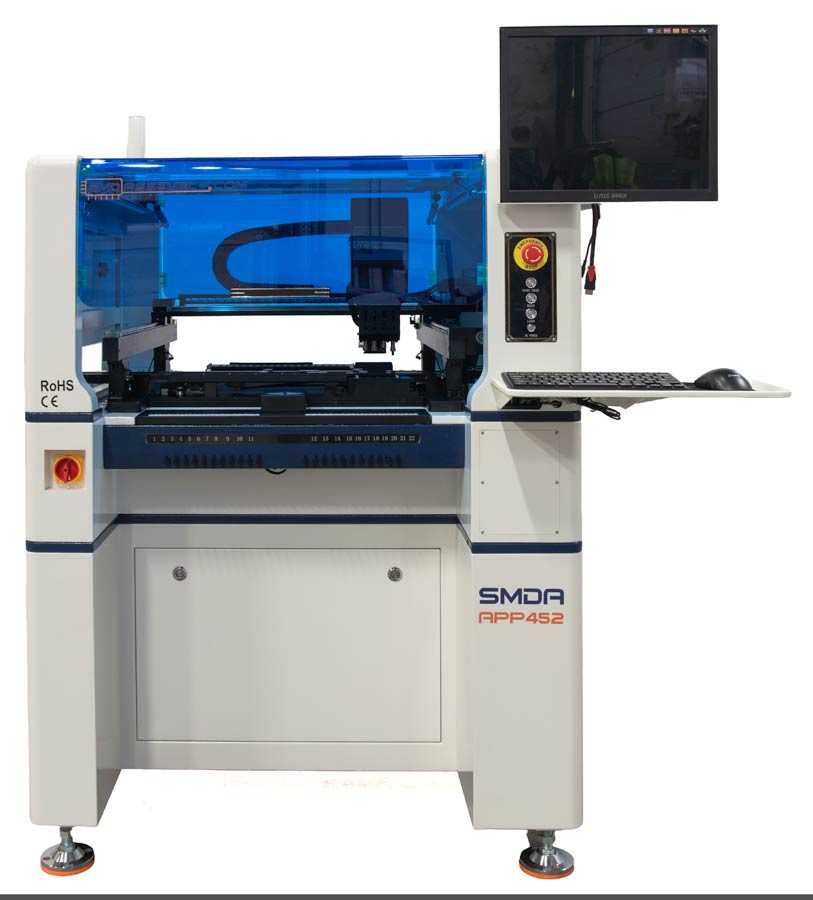

The APP452 pick-and-place machine delivers high-performance SMT assembly for European manufacturers.
Equipped with four placement heads and an impressive placement rate of 11,000 CPH, it handles a broad component range from 0201 up to 40 × 40 mm and heights up to 11 mm.
With industry-leading precision 0.025 mm placement accuracy, 0.01 mm repetitive placement and positioning accuracy the APP452 ensures exceptional quality and yield.
Its advanced fiducial marks identification camera and Windows 10 support make setup and integration seamless. Designed for reliability, flexibility, and speed, the APP452 empowers businesses to boost throughput, cut costs, and scale production with confidence.
Specifications
| Number of Placement Heads | 4 |
| Maximum Placement Rating | 11,000 cph |
| IPC 9850 | 6.000 cph Net. Trough Put |
| Placement Accuracy | 0,025 mm |
| Positioning Accuracy | 0,01 mm |
| Min. Component Size | 0201 |
| Max. Component Size | 40 x 40 mm |
| Max. Component Height | 11 mm |
| Operating System | Windows 10 |
| |
| PCB Specifications |
| Maximum Placement Area | 475 x 330 mm |

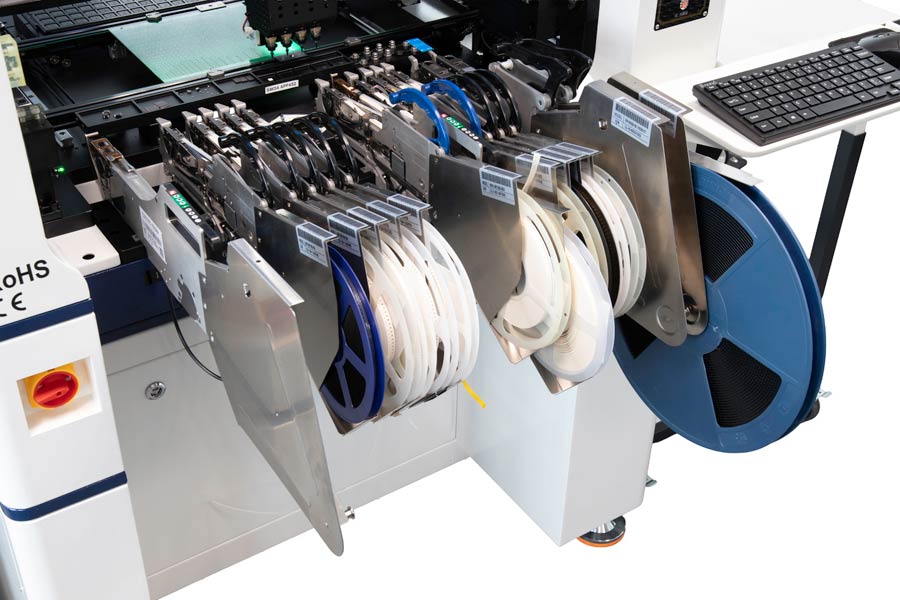

| Feeder Positions | 52 (front 22, rear 30) |

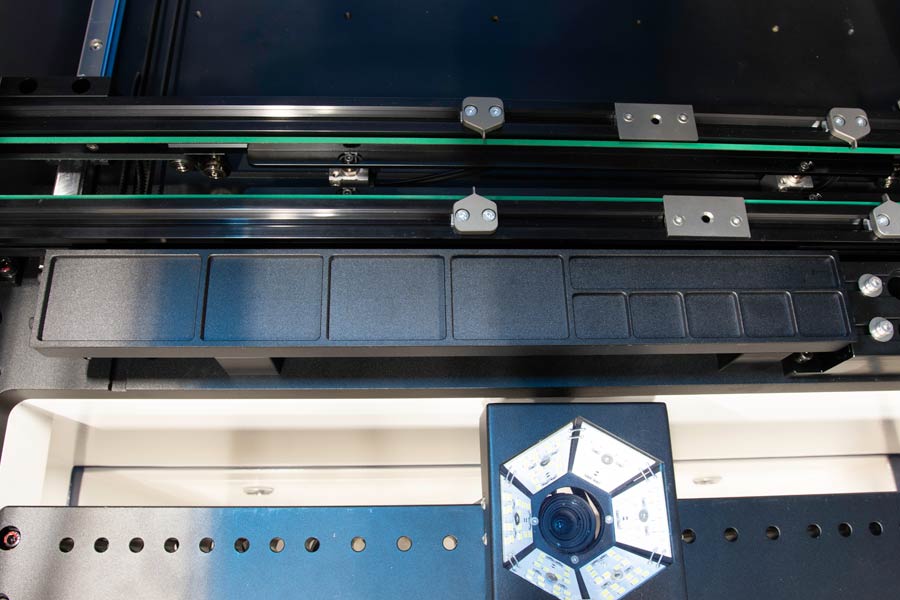

| Bulk Component Tray | 1 Included |

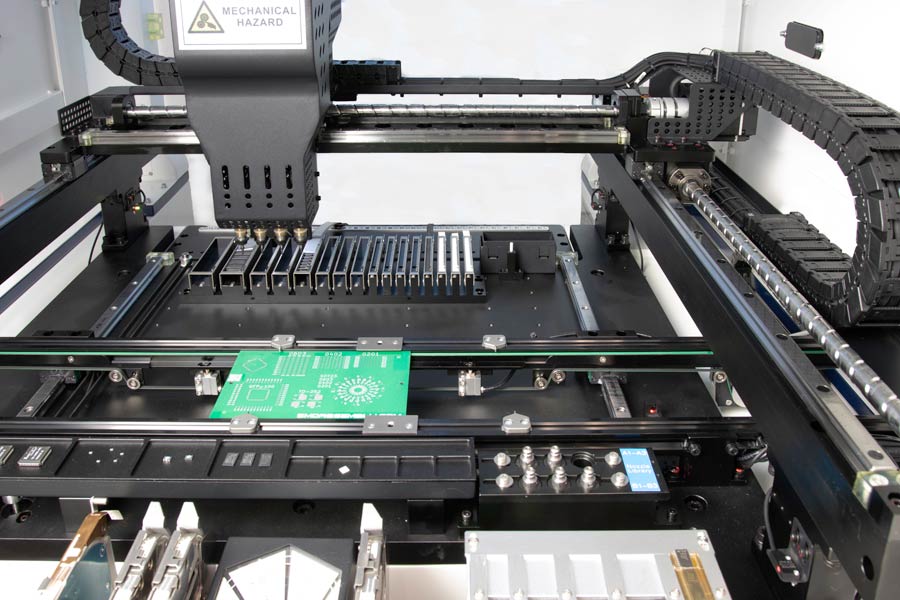

| Strip Feeder Tray | 1 Included |

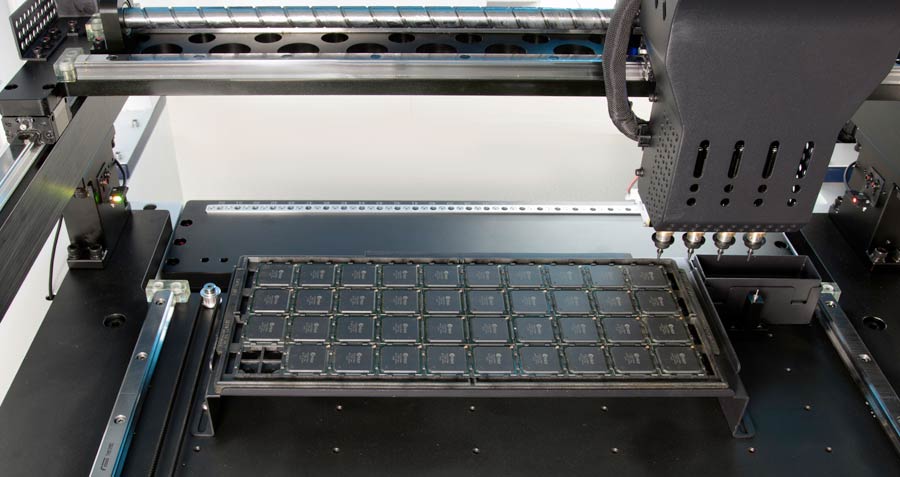

| Jedec Tray Support | Included |
| Feeder Types | Electric Feeder, Pneumatic Feeder, Stick Feeder 8/12/16/24/32/44/56 mm |

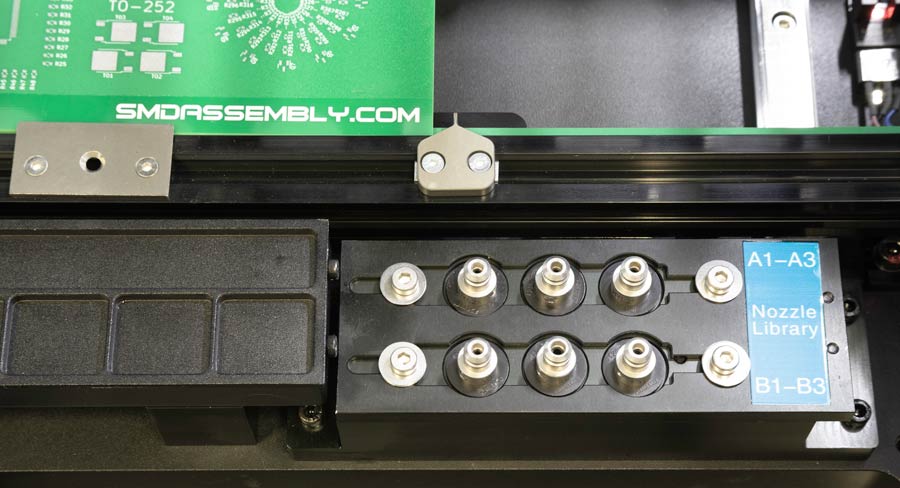

| Automatic Nozzle Changer | 6 positions |
| |
| Dimensions | 102 x 111 x 134 (h) cm |
| Weight | 320 Kg |
| |
| The APP452 is shipped per crate transport. |
| APP452 Crate Dimensions | 125 x 130 x 166 (h) cm |
| Shipping Weight | 390 Kg |
