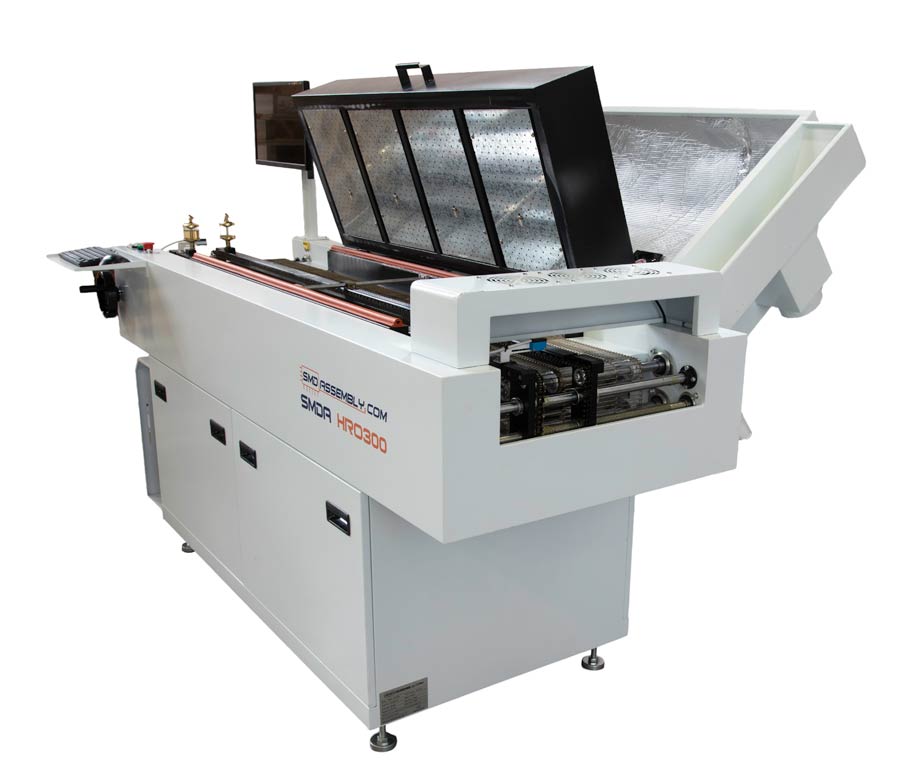

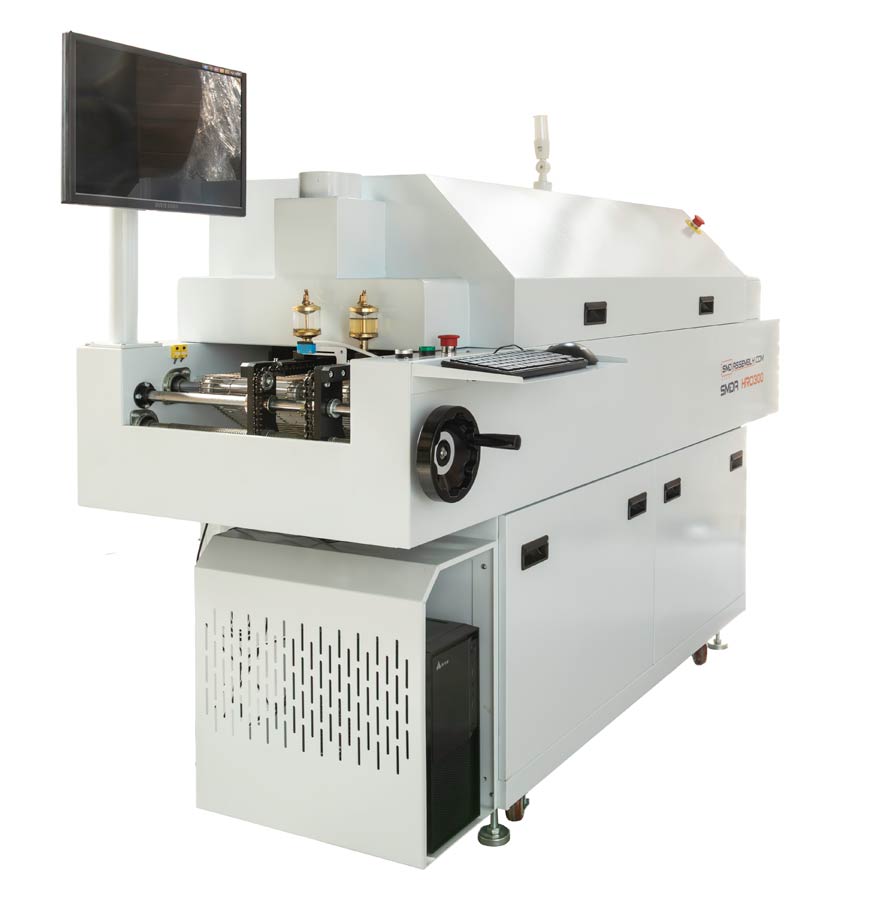

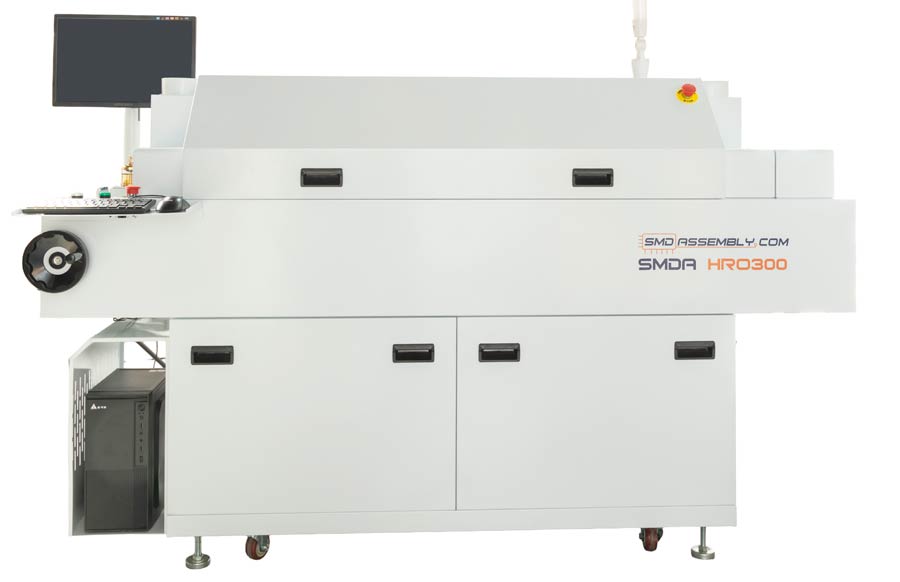

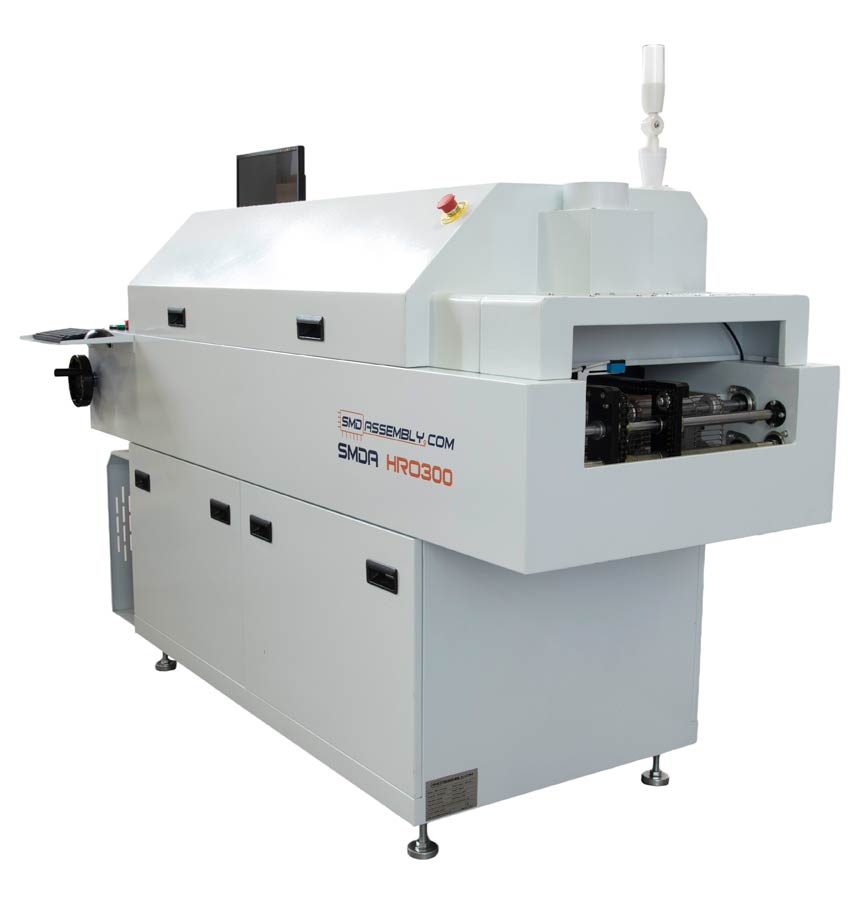

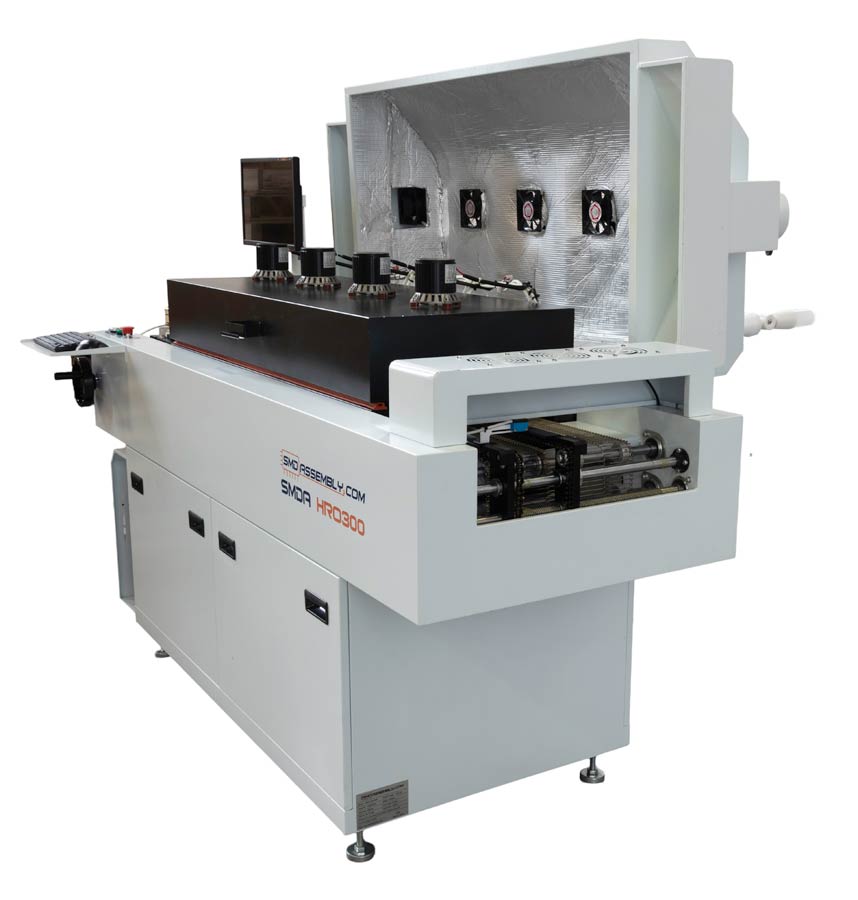

The SMDA-HRO300 reflow oven is a compact, powerful solution for precise SMT soldering. Featuring four heating zones and a maximum temperature of approximately 300°C, it delivers stable and repeatable thermal profiles.
Combining infrared and convection heating ensures even heat distribution, while the conveyor speed is adjustable from 90 to 1400 mm/min. The oven supports PCB sizes up to 300×300 mm and includes PID temperature control for high accuracy.
With forced cooling, integrated safety systems, and power consumption around <11 kW, the SMDA-HRO300 is ideal for reliable and efficient production in small to medium-scale electronics manufacturing environments.
Specifications
| Max. PCB Width | <300 mm |

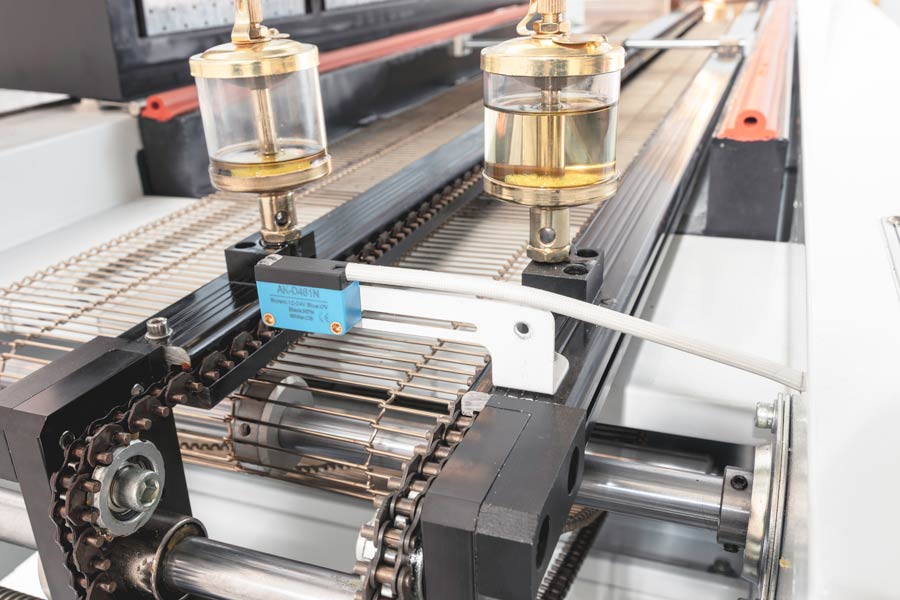

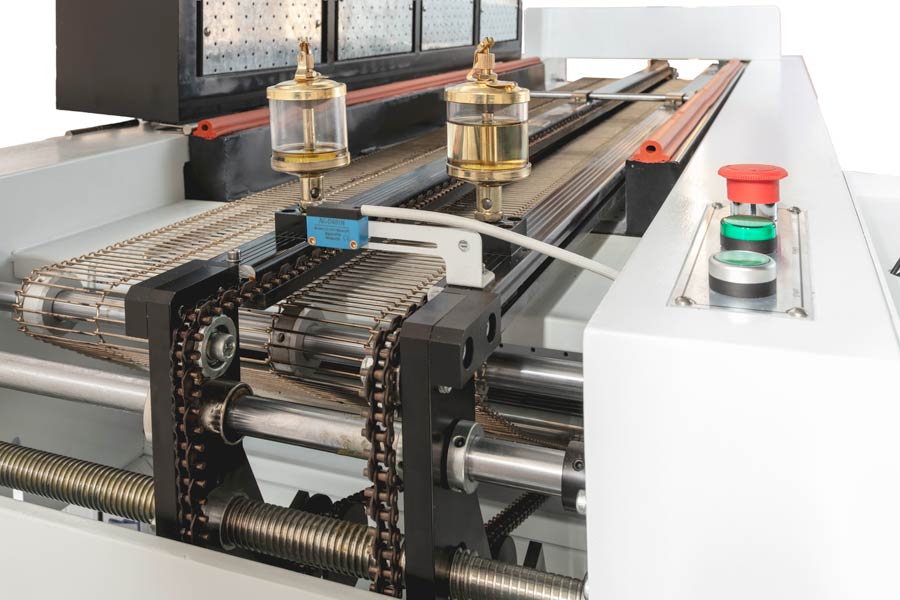

| Transport Type | Finger and mesh belt |
| Heating Zones | 4 upper zones and 4 bottom zones |
| Heating Zone Length | 1250 mm |
| Heating Method | Full hot air |
| Warm-up Time | About 15 minutes |
| Temperature Range | Up to 400ºC |
| Temperature Control Type | PID - SSR |
| |
| Peak Power | <11KW |
| Work Power | 4KW |
| Power Supply | 230V AC |
| |
| Operating System | Windows |
| Integrated Profiling Program | Included |
| Trailing Thermocouples | 2 |
| |
| Dimensions | 210 x 77/96 x 129 (h) cm |
| Weight | 300 kg |
| |
| The HRO300 is shipped per crate. |
| Shipping Dimensions | 220 x 93 x 160 (h) cm |
| Shipping Weight | 370 kg |
