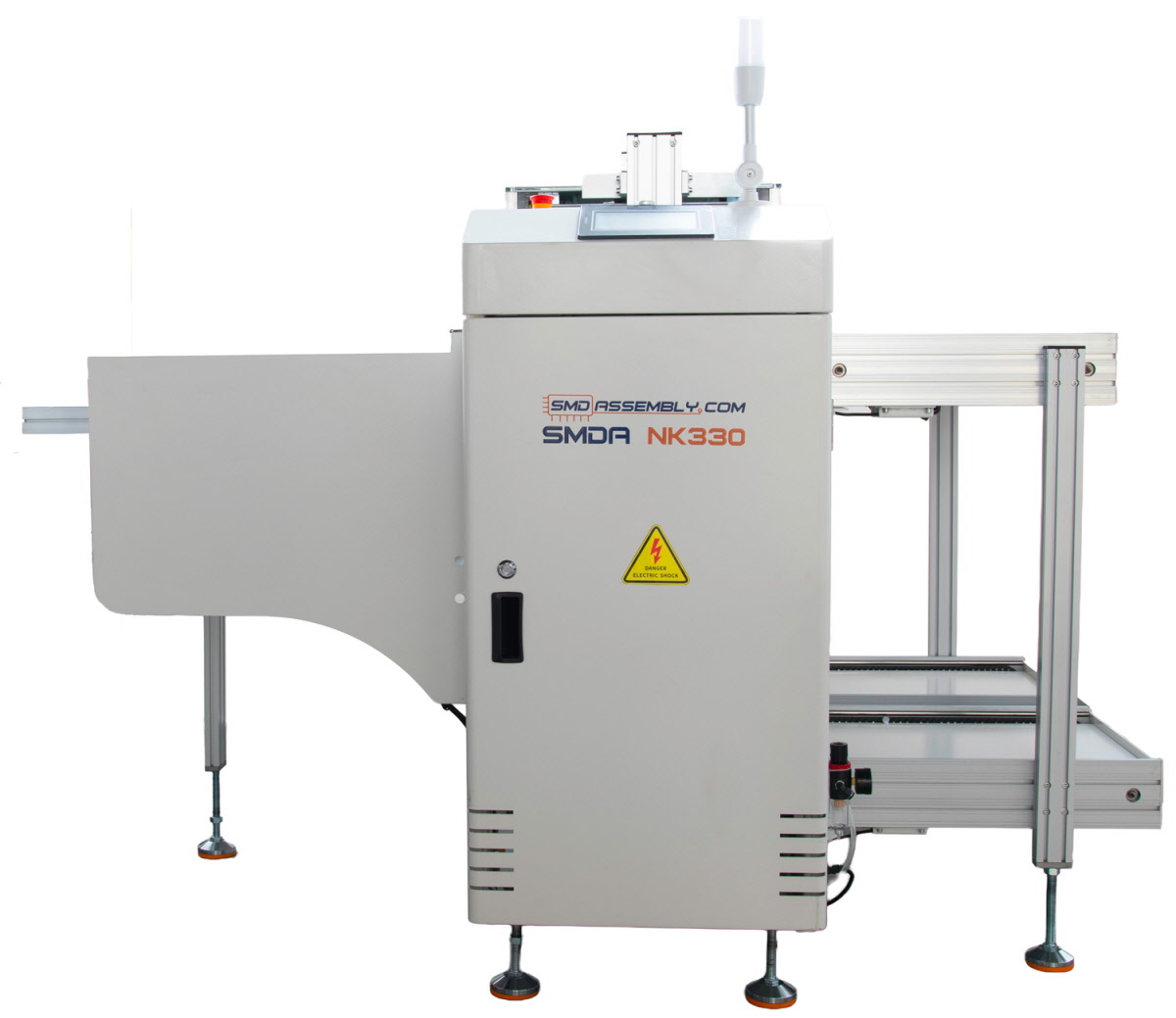

SMDA NK330 Fully Automatic 2-Lane NG/OK Loader, max. pcb width 50-330mm, 230V
The SMDA-NK330 Good/No good unloader is used to collect good and faulty PCB's into a PCB rack at the end of SMT your production line. Our AOI inspection machine checks if the PCB is faulty or good. This combination of machines at the end of your SMT production line saves your engineers a lot of time in quality control and optimizes productivity.
Specifications;
PCB loading time; ~6 seconds
PCB Thickness; Min. 0.6 mm
PCB Size; 50 x 50 mm up to 455 x 330 mm
Dimensions; 191 x 158 x 124 (h)
Weight; 360 kg
The NK330 is shipped per crate
Shipping dimensions; 210 x 170 x 150 (h) cm
Shipping weight; 430 kg
