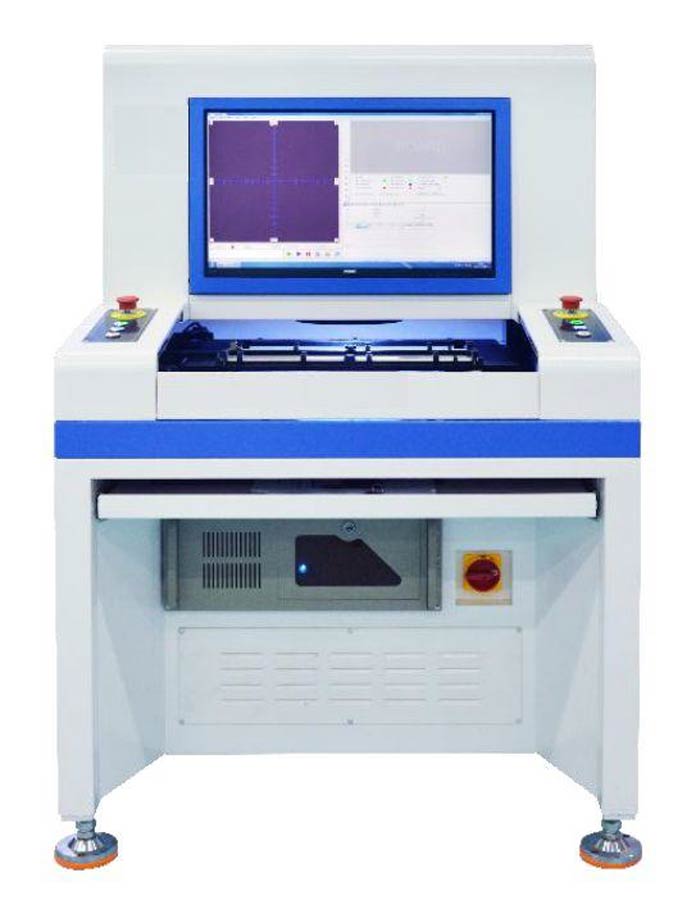

SMDA AOI5 Stand-Alone 2D AOI system
SMDA-AOI5
Only
  • Description

SMDA AOI5 Stand-Alone 2D AOI system, 25x25-300x450mm pcb size, 6MP camera, 10μ Res., 0201 min comp size

The SMDA AOI5 (Automatic Optical Ispection) automatically searches for any faults in your SMT Production. The faults can include offset components, missing parts, damage, false welding etc. The SMDA AOI5 uses a 6 MP camera paired with a highy intelligent automated detection program to optimize and automate your quality control.

Specifiations;
Max. PCB size; 25 x 25 mm up to 300 x 450 mm
Max. PCB Thickness; 0.3 mm to 6 mm
Min. Component size; 0201
Operating system; Windows 8
Display; 22 inch LCD display screen
Power Supply; 220V AC / 2KW



Specifications

Category Item Sub-item Specification
Recognition System Inspection Using multiple algorithms synthetically such as WIDM, color image contrast technology, color extracting technology, similarity, binarization algorithm, OCR/OCV shot test and so on.
Camera Hikvision robot 6 million CCD color industrial camera; resolution option: 10μ
Lamp-house Ring RGB LED lamp-house
Image Processing Speed 0402 Chip <6ms
Per-image Time <100ms
Inspection Items Paste Printing Defects Misaligned, overflow, insufficient, pasting open, stain
Component Defects Missing, misaligned, skewed, tombstone, billboard, overturned, reversed polarity, wrong, damaged
Solder Defects Overflow, insufficient, short solder, stain
Anti Static Measures Anti static electric outlet, anti static wreath
Mechanism System PCB Size 25×25mm - 300mm×450mm, can make bigger size according to clients’ demands
PCB Thickness 0.5mm - 2.5mm
PCB Warp Tolerance <2 mm with fixture to correct deformation; customized for special requirements
Component Clearance 0.5mm - 100mm; special requirements can be customized
Minimum Space Parts 0201 chip
X, Y Platform Driver High-precision grinding silent screw guide rail combination, Taiwan TBI and Nidec Tongfu motor system
Orientation <25 μm / 0.025mm
Moving Speed 750mm/s
Soft System Operation System Microsoft Win7 / Win10
Controlling & Recognizing Characteristics WIDM, study OK template, automatically set template imaging, identify data and error numerical value
Operation Graphic programming, chip library inspection frame according to chip shape, aureate position, micron adjust, and easy programming
Mark Mark Numbers 2 marks can be chosen
Recognising Speed 0.5s/pcs
Controller Computer Industrial computer: CPU Intel dual-core, memory 8G, hard disk 480G
Display 24 inch TFT
Others Machine Dimensions 870mm × 950mm × 1320mm
Weight 480kg
Power Supply AC220V ± 10%, single phase 50/60Hz, power consumption 600W, along with an unbreak power
