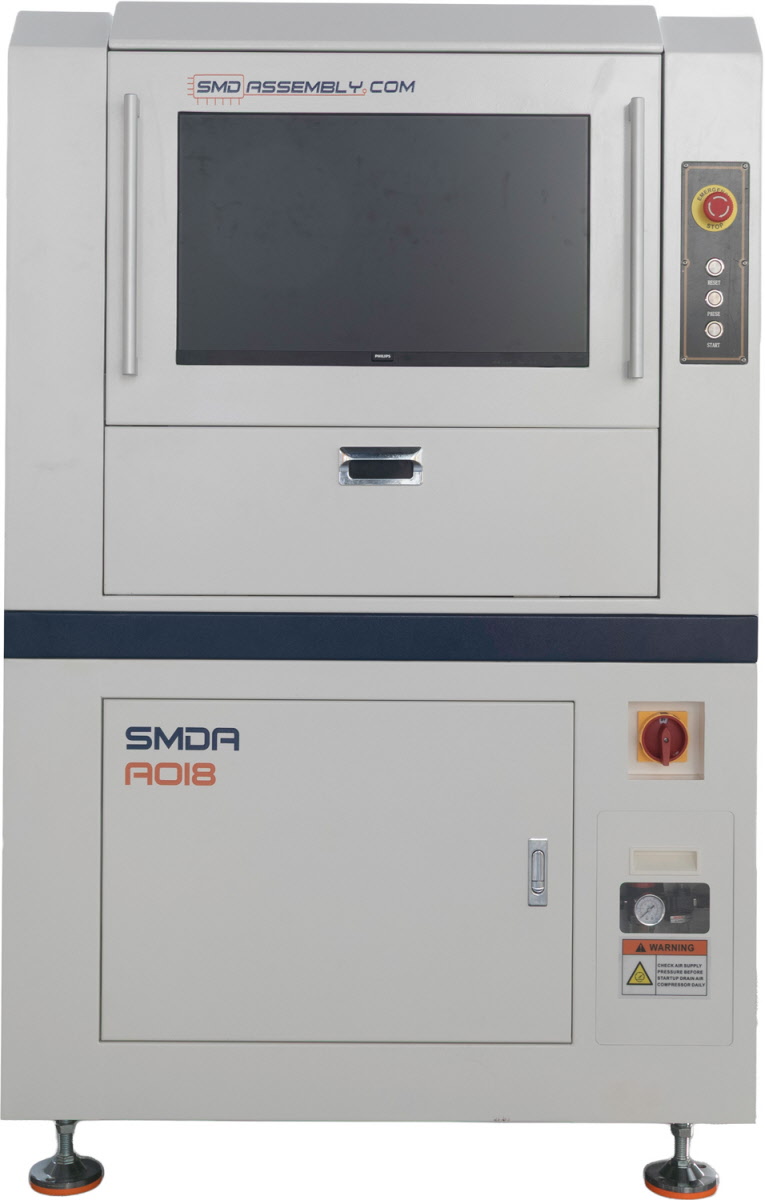

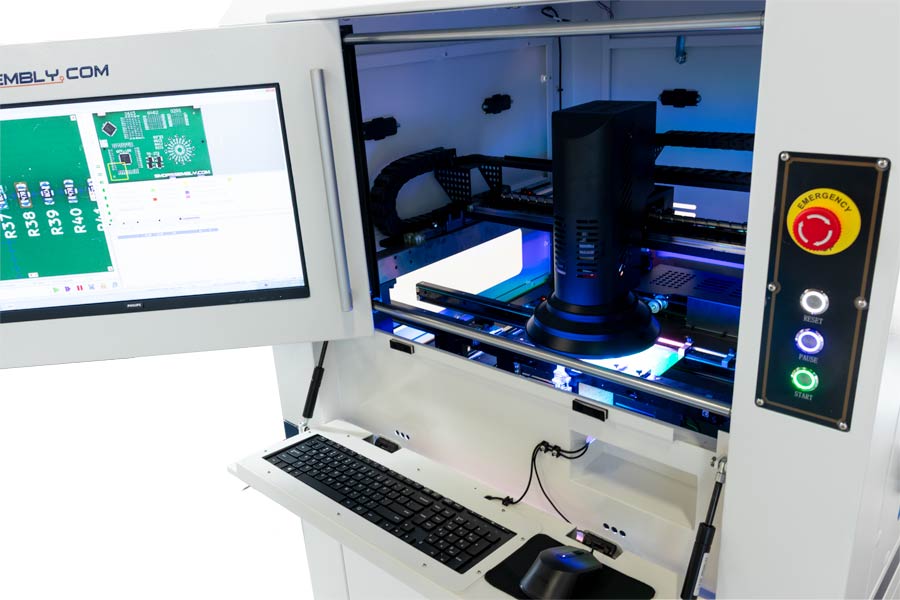

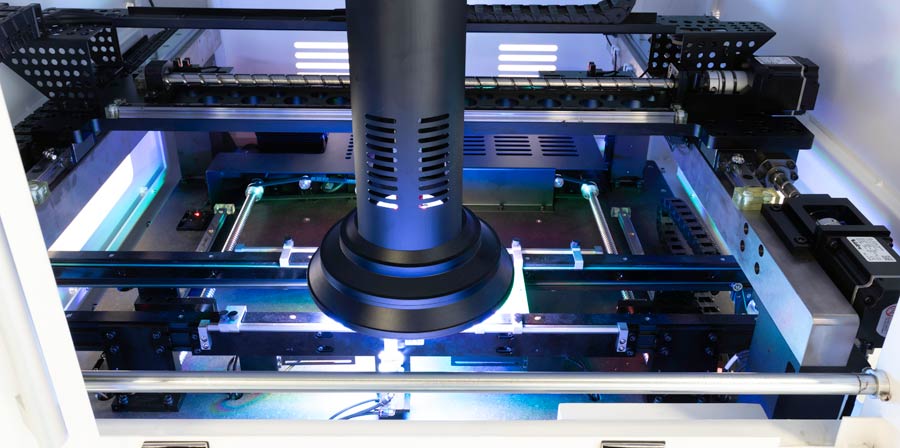

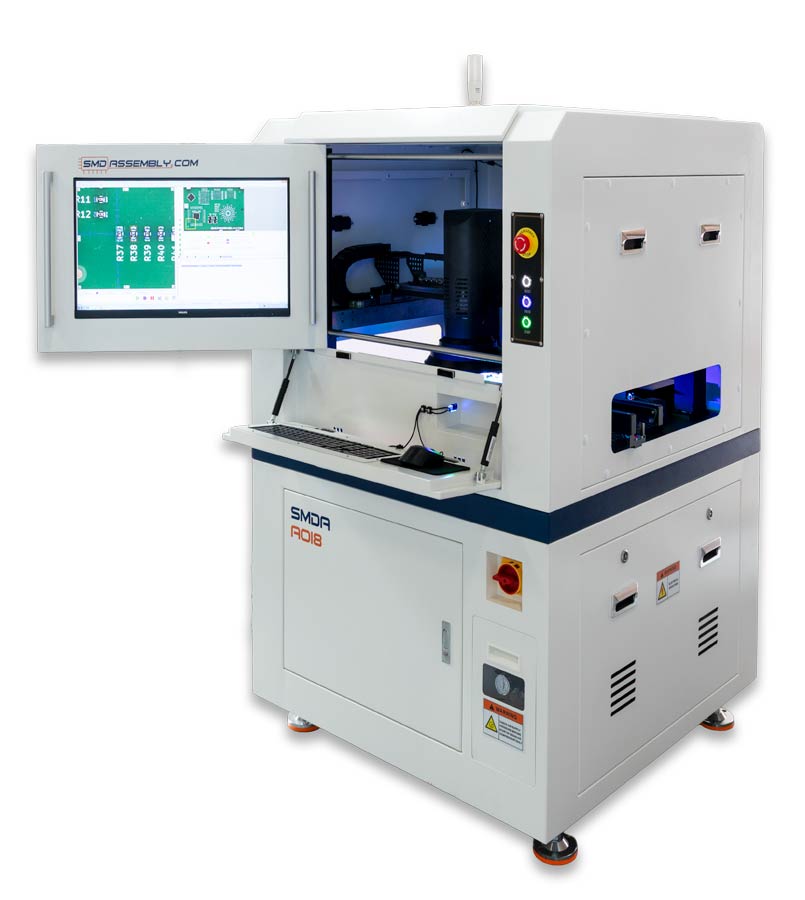

The SMDA AOI8 (Automatic Optical Ispection) automatically searches for faults in your SMT Production. The faults can include offset components, missing parts, damage, false soldering joints etc. The SMDA AOI8 uses a 6 MP camera paired with a highy intelligent automated detection program to optimize and automate your quality control.
Specifiations;
Max. PCB size; 35 x 35 mm up to 340 x 400 mm
Max. PCB Thickness; 0.3 mm to 6 mm
Min. Component size; 0201
Operating system; Windows 7

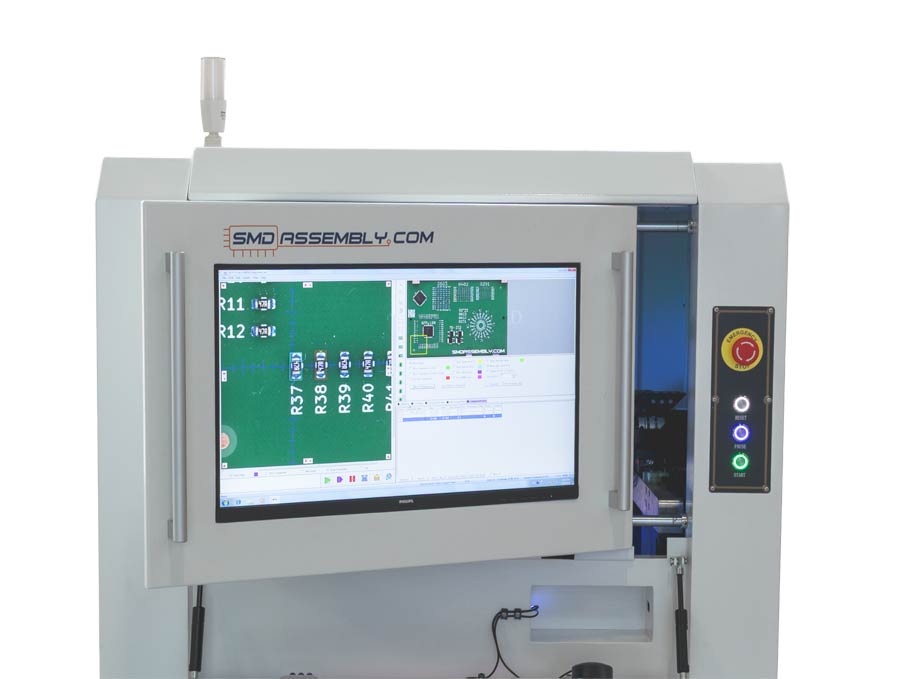

Display; 22 inch LCD display screen
Power Supply; 220V AC / 2KW
Air pressure requirements; >0.5 MPa

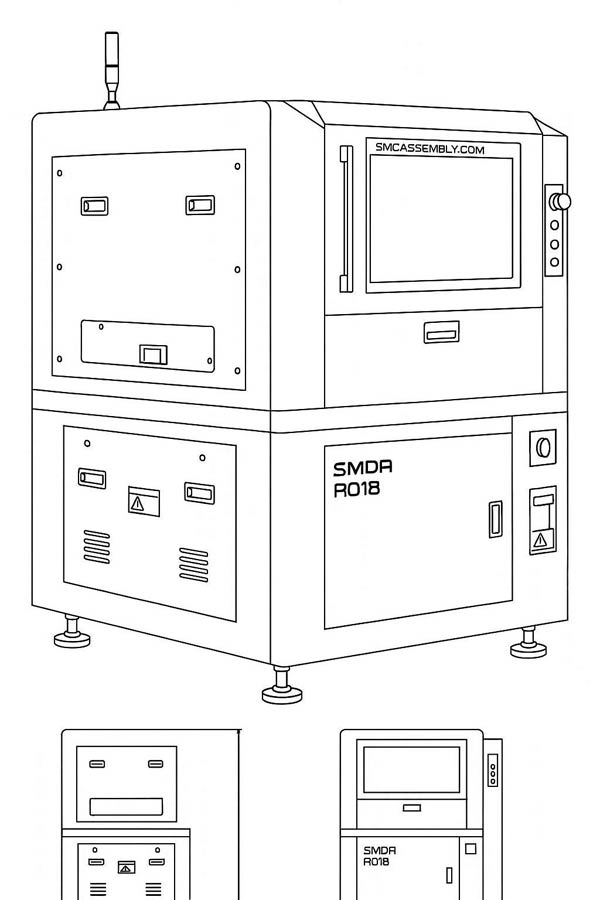

Dimensions; 104 x 106 x 155 (h) cm
Weight; 555kg
The AOI8 is shipped with crate transport.
Shipping dimensions; 210 x 170 x 150 (h) cm
Shipping weight; 625 kg
