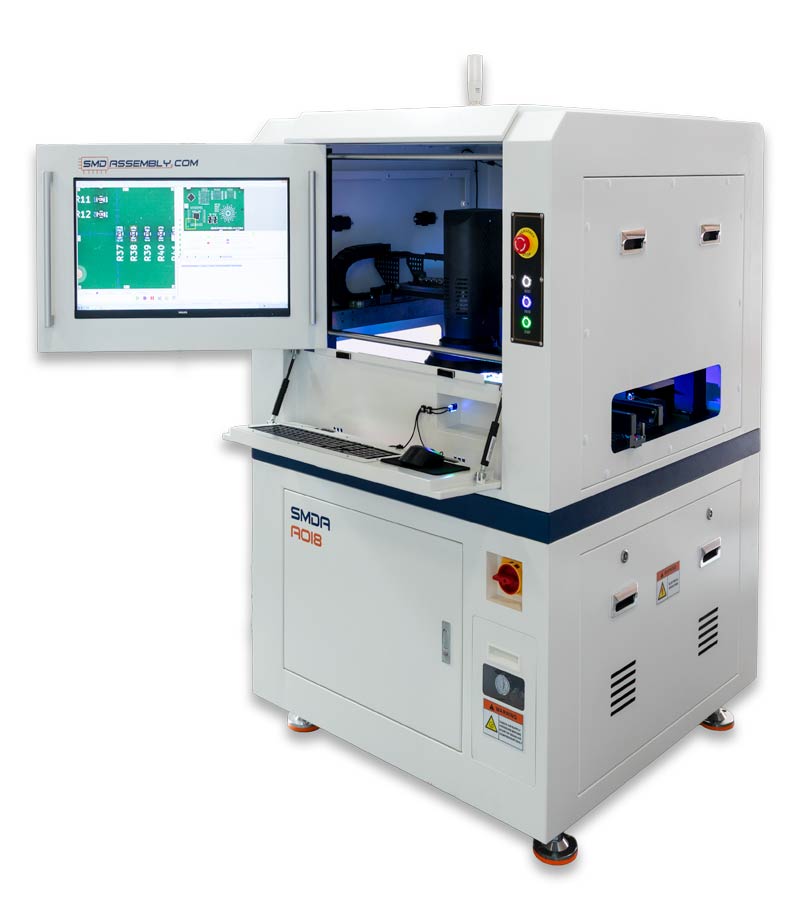

SMDA-AOI8 is your frontline defense against soldering defects and placement errors. By utilizing high-speed, high-precision visual processing technology, our AOI8 systems automatically scan every PCB, comparing solder joints against gold-standard parameters to ensure flawless execution.
Whether you are producing high-density, fine-pitch boards or large-scale assemblies, AOI8 provides real-time process control. By identifying defects early, you prevent faulty units from advancing, significantly reducing repair costs and eliminating the waste of irreparable scrapped boards.
Invest in reliability. Implement AOI8 to guarantee superior quality, optimize your assembly line, and deliver perfection to your clients every time.
Specifications
| Max. PCB Size | 35 x 35 mm up to 340 x 400 mm |
| Max. PCB Thickness | 0.3 mm to 6 mm |
| Transfer Height | 900±20 mm |
| Min. Component Size | 0201 |
| Operating System | Windows 7 / 10 |

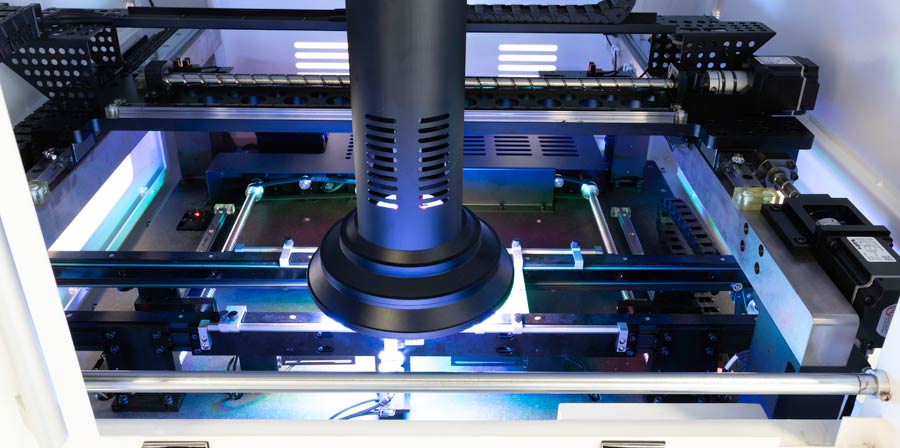

| Camera Pixels | 6 million industrial camera |

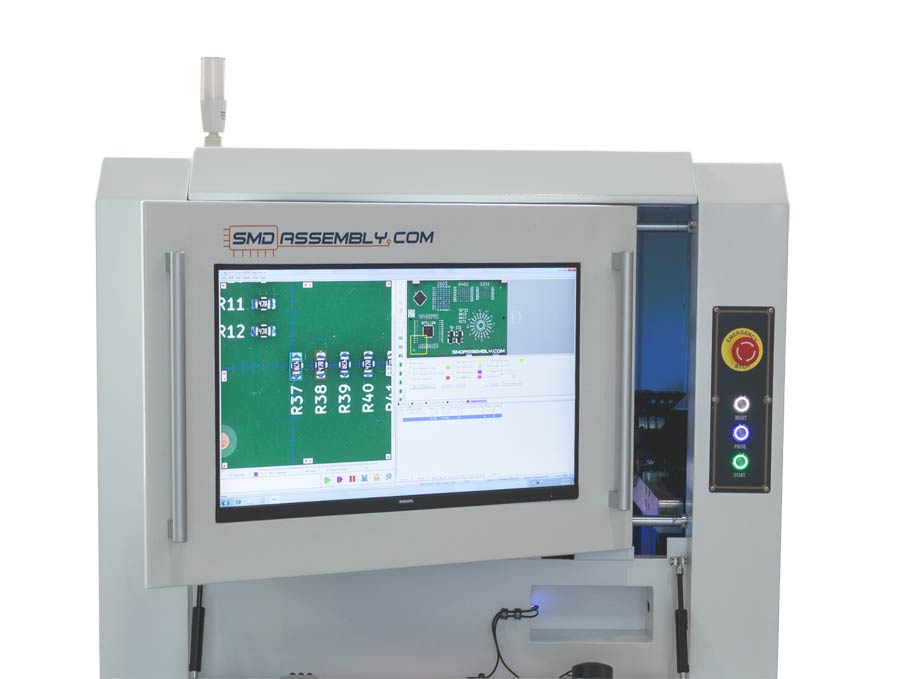

| Display | 22 inch LCD display screen |
| Direction | Left to Right |
| Power Supply | 220V AC / 2KW |
| Air Pressure Requirements | >0.5 MPa |
| |

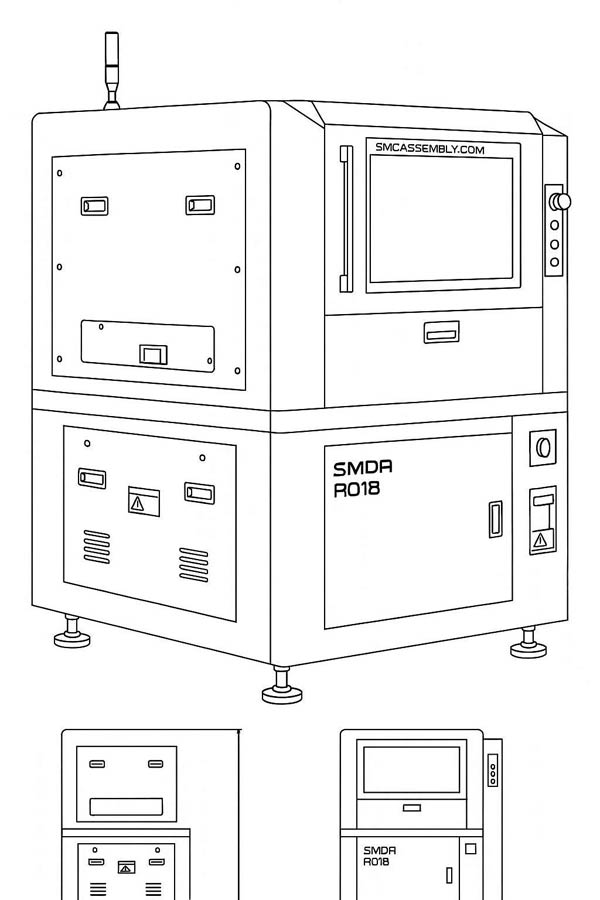

| Dimensions | 100 x 103 x 155 (h) cm |
| Weight | 555 kg |
| |
| The AOI8 is shipped with crate transport. |
| Shipping Dimensions | 210 x 170 x 150 (h) cm |
| Shipping Weight | 625 kg |
